400W Solar Panel Kit 12V Monocrystalline Solar Panel with 40A MPPT Solar Charge Controller, Mounting Z Bracket, 20FT 10AWG Solar Cable, 8Ft 10AWG Tray Cable, LCD Dispaly, 40.1 X 20 X 1.18 Inches

$637.41 USD

Sale Sold out

Shipping calculated at checkout.

Style 400W Panel+Mppt 40A Controller

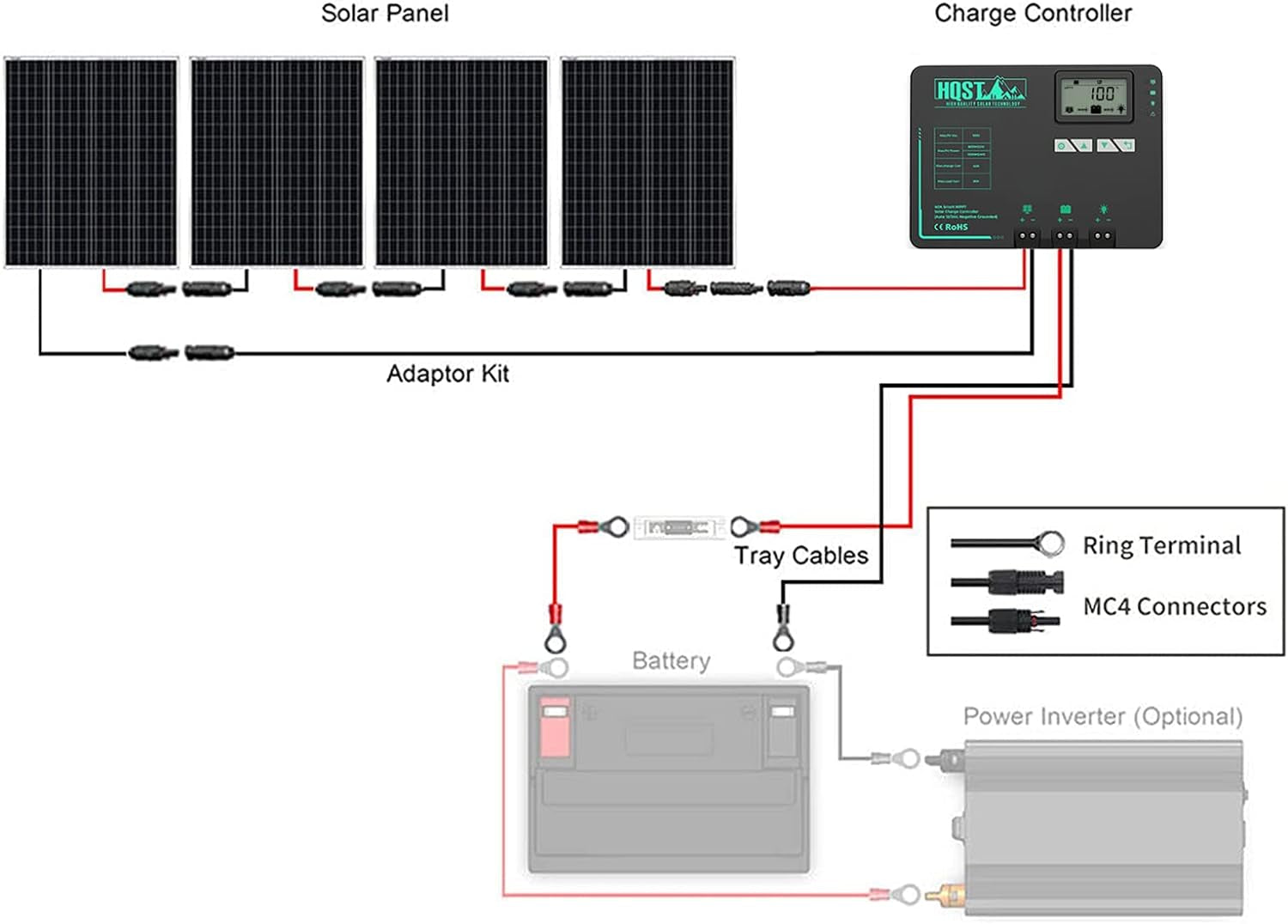

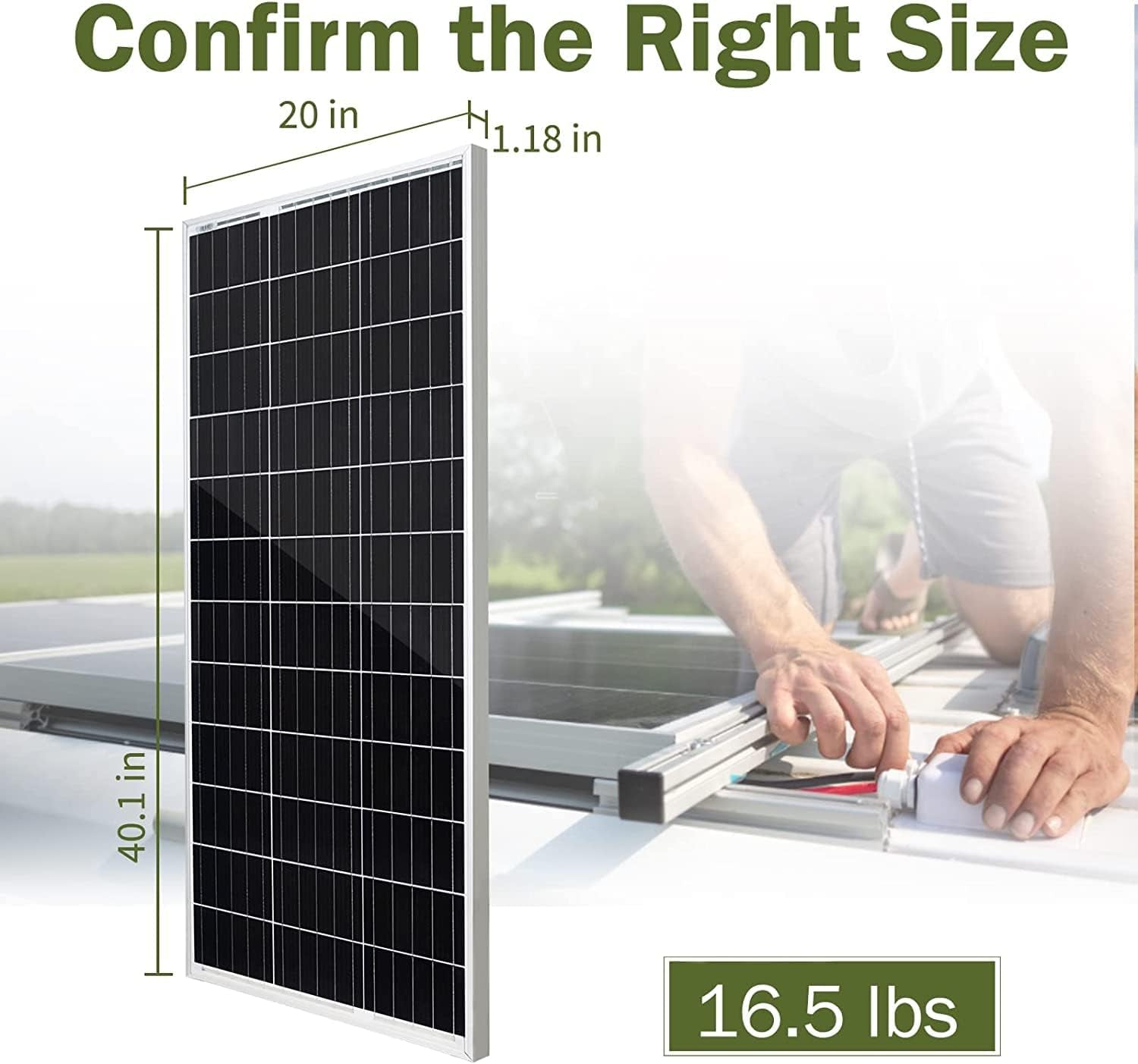

【Installation Ready】The kit includes 4 pack 100 Watt 12 Volt Monocrystalline Solar Panel, 40 Amp 12V/24V MPPT Solar Charge Controller, LCD Display,20Ft 10AWG Solar Panel and Controller Connector Cables, 8FT 10AWG Controller and battery Connector cables,4 Set of Mounting Z Brackets.For Good Partner Battery, please search B08XMB96P4. The dimension of solar panel is 40.1 x 20 x 1.18 inches.
【Versatile】Used in various off-grid applications that include 12 and 24 volts arrays, water pumping systems, signaling systems and other off-grid applications. Great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins.
【Durable】Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.Pre-drilled holes on the back of the panel allow for fast mounting and securing. IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
【Suitable for LiFePO4 Battery】The Asin of Battery:B08XMB96P4.This kit is suitable for HQST 12 Volts 100Ah Lithium Iron Phosphate Battery, Extended lifespan of LiFePO4 Battery with more than 2000 cycles. The service life is more than FIVE-times that of traditional lead acid batteries. Low self-discharge- the Battery self- discharges below 3% per month, providing optimal longevity and shelf life.

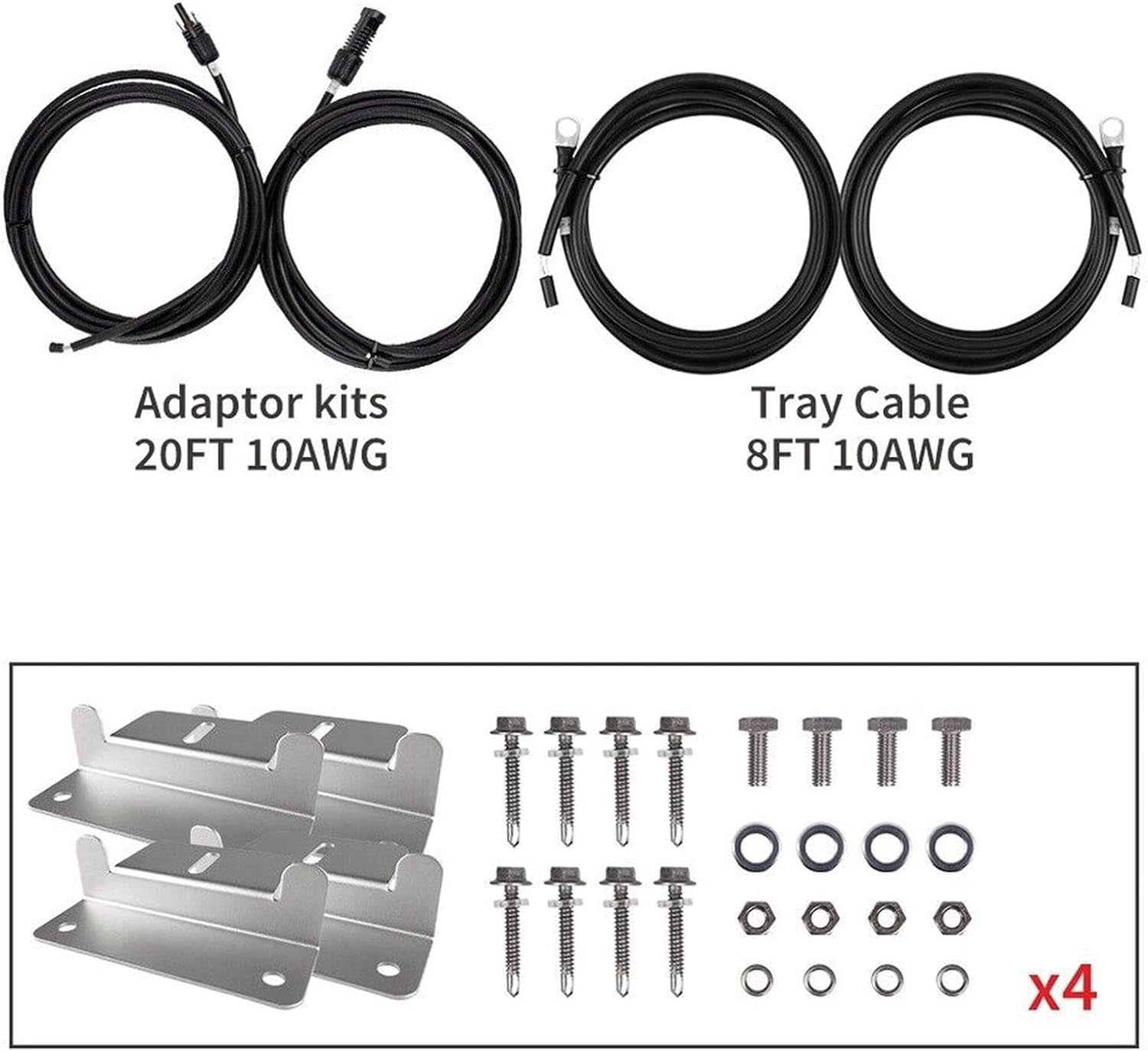

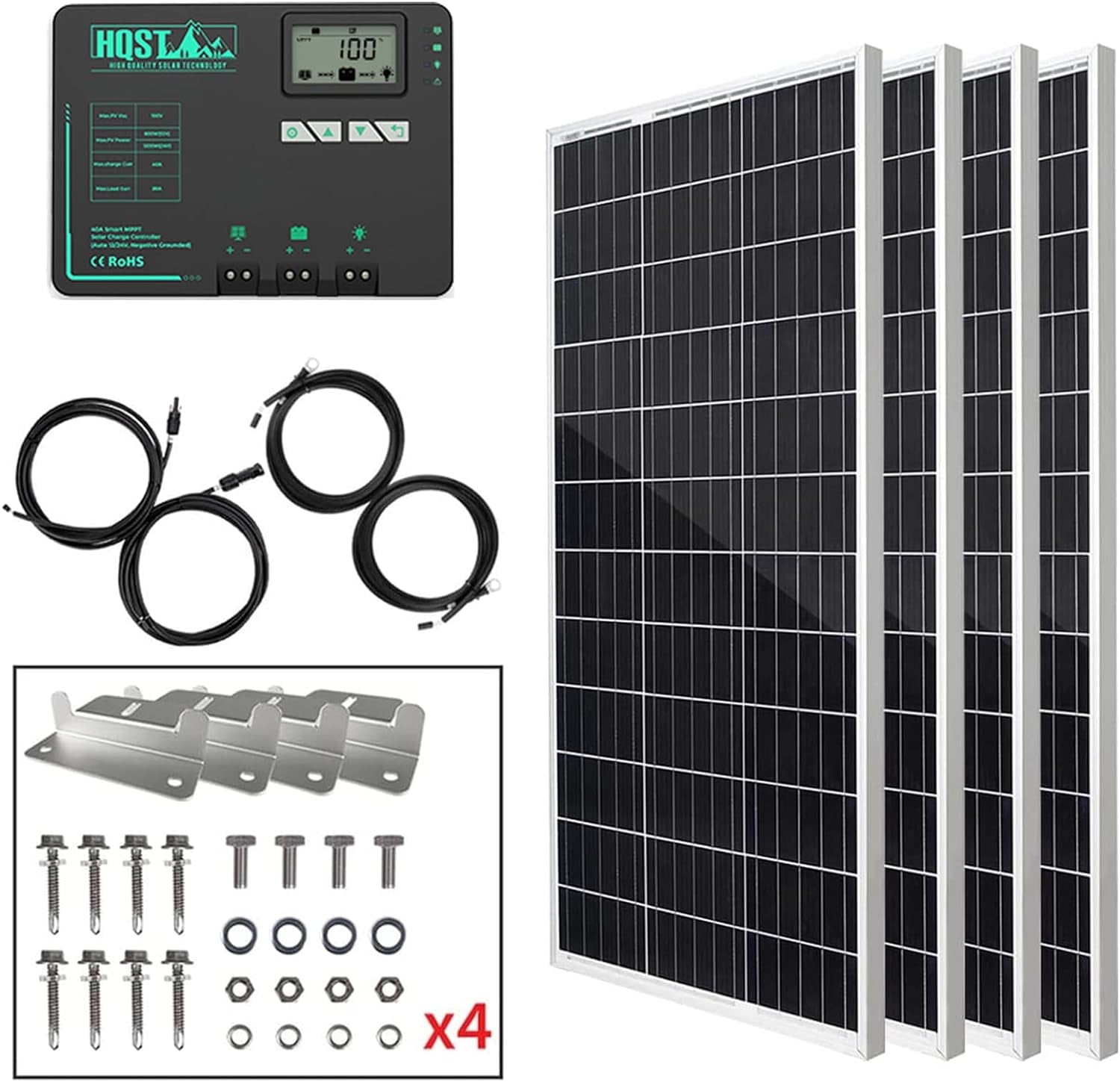

【What You Will Get】- 4 x 100 Watt 12 volt monocrystalline solar panels; 4 x mounting Z brackets sets; 1 x MPPT40 solar charge controller; 1 x 20ft 10 AWG solar panel cables and controller connector cables; 1 x 8ft 10 AWG controller and battery connector cables; 1 x LCD Display Screen

Product Description

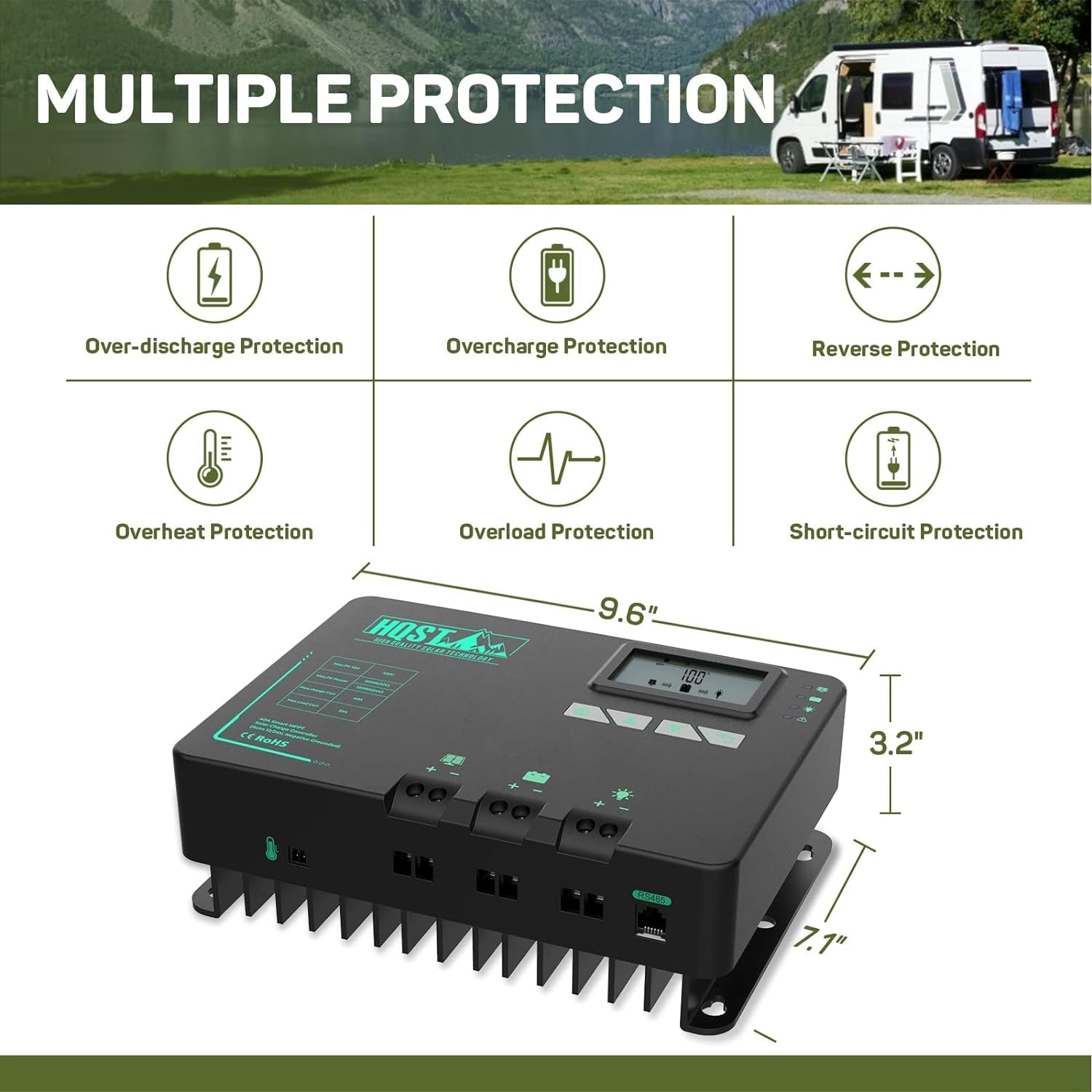

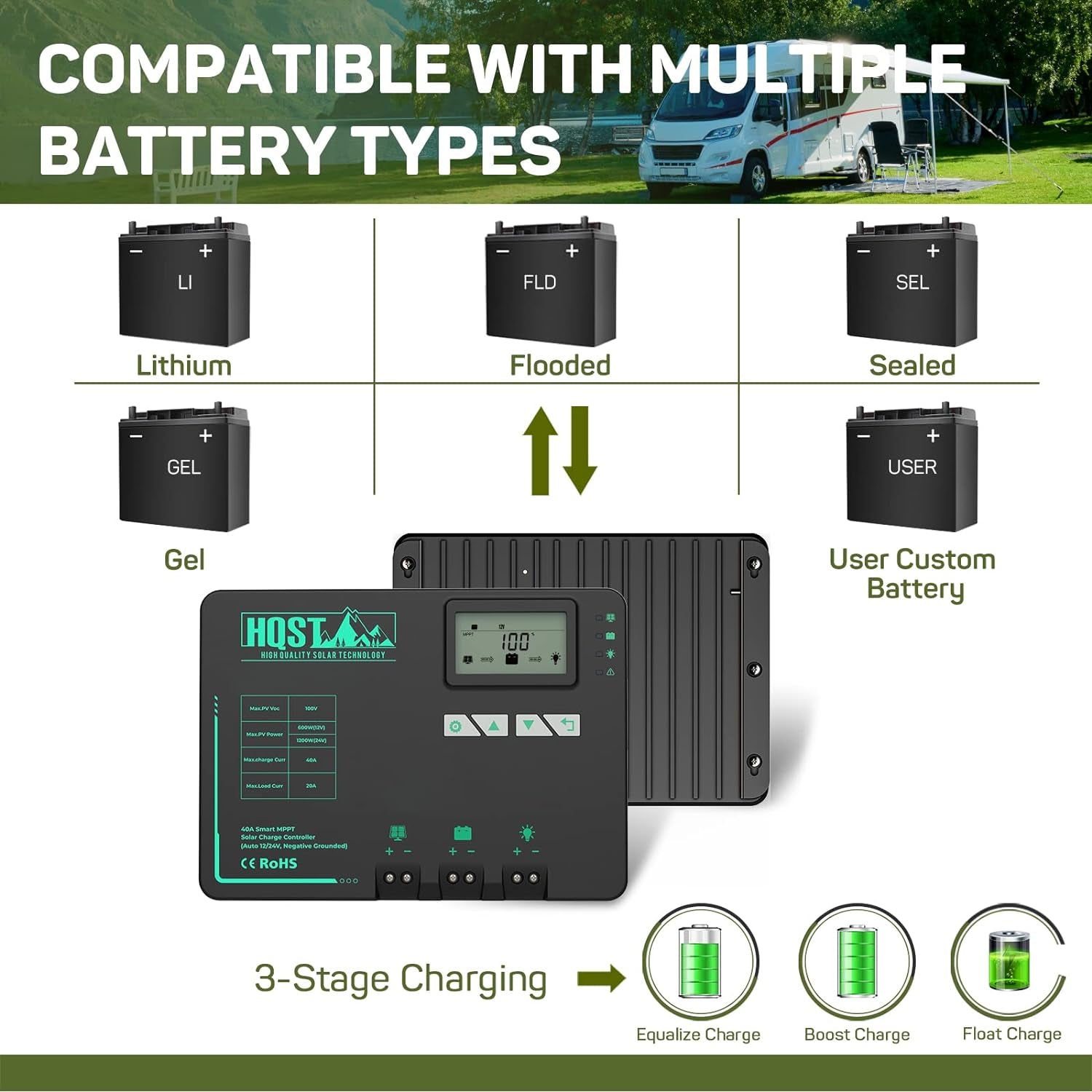

HQST 40 Amp Li MPPT Bluetooth Solar Charge Controller

Built-in Bluetooth module for monitoring and parameters settings
Auto-recognition of 12/24V battery system
Battery temperature compensation function

Battery System Voltage: 12V/24V
Rated Charging Current: 40A
Self-consumption: 12mA/12V; 10mA/24V
Max PV Input Voltage: 100V
Max PV Input Power: 600w/12v; 1200w/24v
Operating Temperature: -31℉ ~ 113℉
Communication Port: RS485
Weight: 4.8 lbs

HQST 400W Monocrystalline Solar Panel + 40A MPPT Solar Charge Controller

HQST 400W solar panel kit is an important component in establishing an off-grid solar energy system. With up to 21% high efficiency monocrystalline solar panels are easy to install and long life, virtually maintenance free. Ideal for charging the batteries for RV, marine, camping, house, etc.

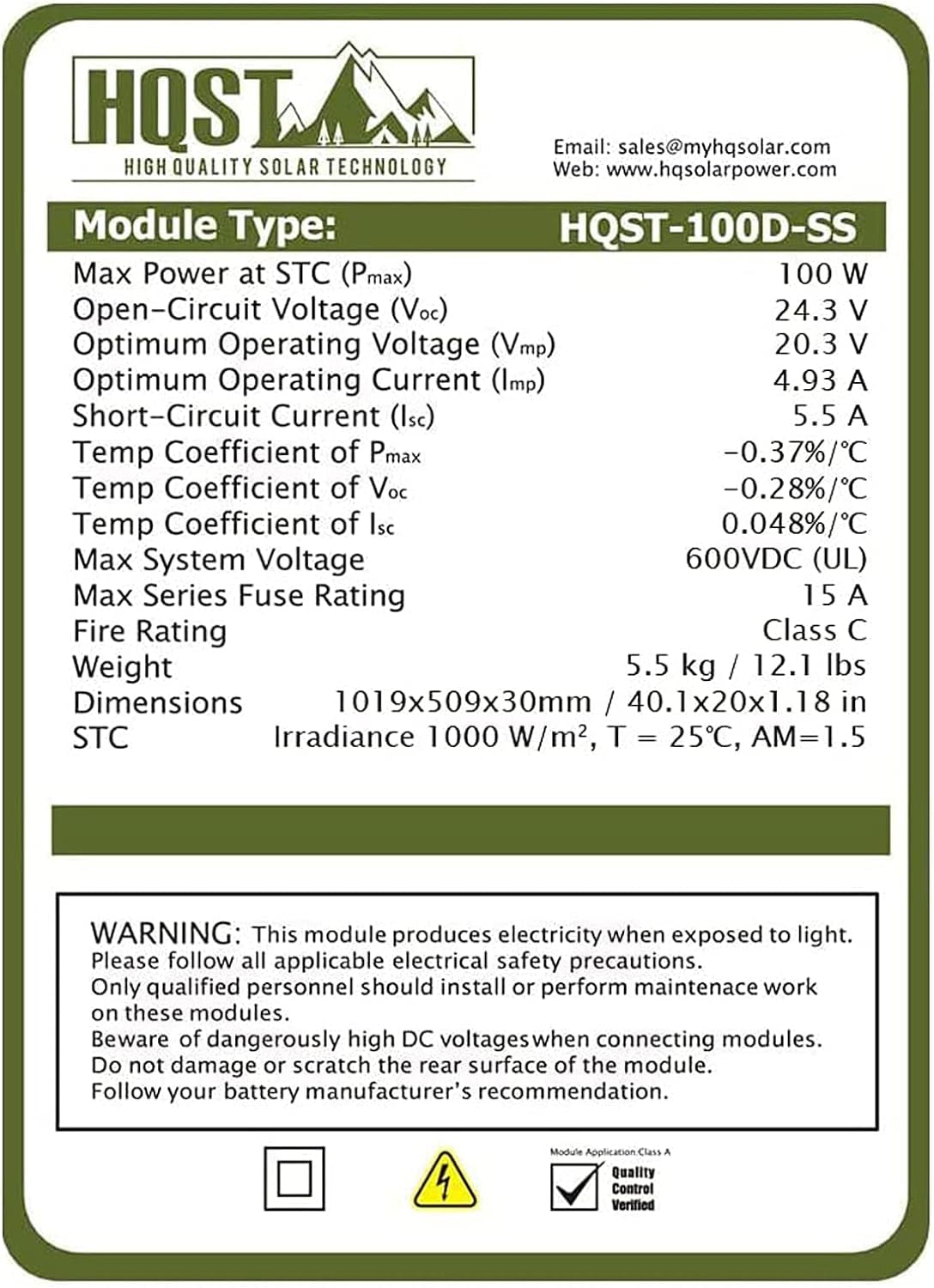

Specifications:

Maximum Power: 100W
Open-Circuit Voltage (Voc): 24.3V
Short-Circuit Current (Isc): 5.5A
Optimum Operating Voltage (Vmp): 20.3V
Optimum Operating Current (Imp): 4.93A
Maximum System Voltage: 600VDC UL
Maximum Series Fuse Rating: 15A
Weight: 12.1lbs

HQST Solar Panels

IP65 Junction Box

IP65 rated junction box with internal sealing rubber ring provides complete protection from environmental particles, water splashes, and low-pressure water jets.

Anti-Corrosion Aluminum Frame

HQST solar panel kit built with a rugged corrosion-resistant aluminum frame, it protects the solar cells greatly from breakage or distortion in tough outdoor conditions for long-lasting durability.

Maximize Power Conversion

HQST adds bypass diodes to this solar panel, which can minimize power drops caused by shade and ensure excellent performance in low-light environments.

Efficient Heat Dissipation

The die-cast aluminum heat sink increases heat dissipation efficiency, which can minimize power loss from heat.

RS485 Communication PORTS

Support for external LCD display/ Bluetooth module/running two units in parallel

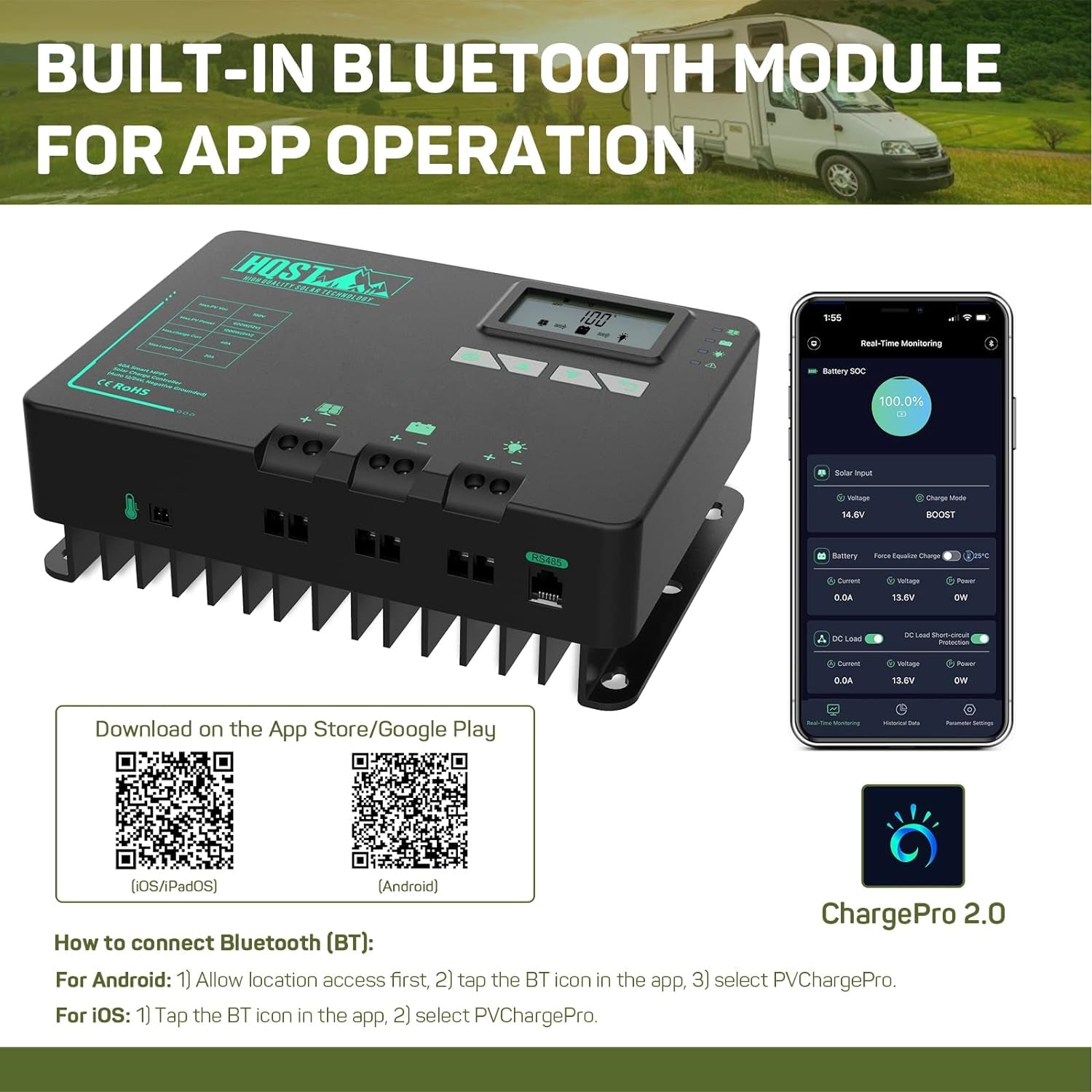

Built-in Bluetooth Module

Easy for checking real-time data and setting parameters via mobile phone APP that keeps 300 days of historical data.

Temperature Sensor

It senses the environment temperature. Put this sensor near the battery.

Higher Charging Power

Thanks to the gel-filled inside and die-cast aluminum heat sink design, the charging power of our HQST 40A MPPT controllers only decreased by 8% after 90 minutes of operation, while the conventional 40A MPPT controllers decreased by 60% after 20 minutes. Fully charge your battery bank faster.

Support Wiring Two MPPT Controllers of the Same Series in Parallel

Two units of the same series(M2420N/M2440N/M4860N) could work together to charge the same battery bank through the parallel charge cable(parallel cables are NOT included). You can combine 20A+40A, 20A+60A, 40A+60A, 20A+20A, 40A+40A, 60A+60A.


Customer Reviews	4.4 out of 5 stars 222	4.4 out of 5 stars 222	4.4 out of 5 stars 222	4.4 out of 5 stars 222
Price	—	—	—	$514.99$514.99
Solar Panel Type	Monocrystalline	Monocrystalline	Monocrystalline	Monocrystalline
Charge Controller Type	PWM	PWM	PWM	MPPT
System Voltage	12V/24V	12V/24V	12V/24V	12V/24V
Battery Type	SLD/Gel/Flooded	SLD/Gel/Flooded	SLD/Gel/Flooded	SLD/Vented/Colloidal/Lithium
USB Interface	5V 1A	5V 1A	5V 1A	/
Grounding	Common Positive	Common Positive	Common Positive	Negative Grounded
Tray Cable	8FT 10AWG	8FT 10AWG	8FT 10AWG	8FT 10AWG
