600W 12V Monocrystalline Solar Premium Kit with 60A MPPT Charger Controller /Bluetooth Module /Adaptor Kit /Tray Cables /Fuse Cable /Mounting Z Brackets /ANL Fuse /Branch Connectors
600W 12V Monocrystalline Solar Premium Kit with 60A MPPT Charger Controller /Bluetooth Module /Adaptor Kit /Tray Cables /Fuse Cable /Mounting Z Brackets /ANL Fuse /Branch Connectors
Couldn't load pickup availability

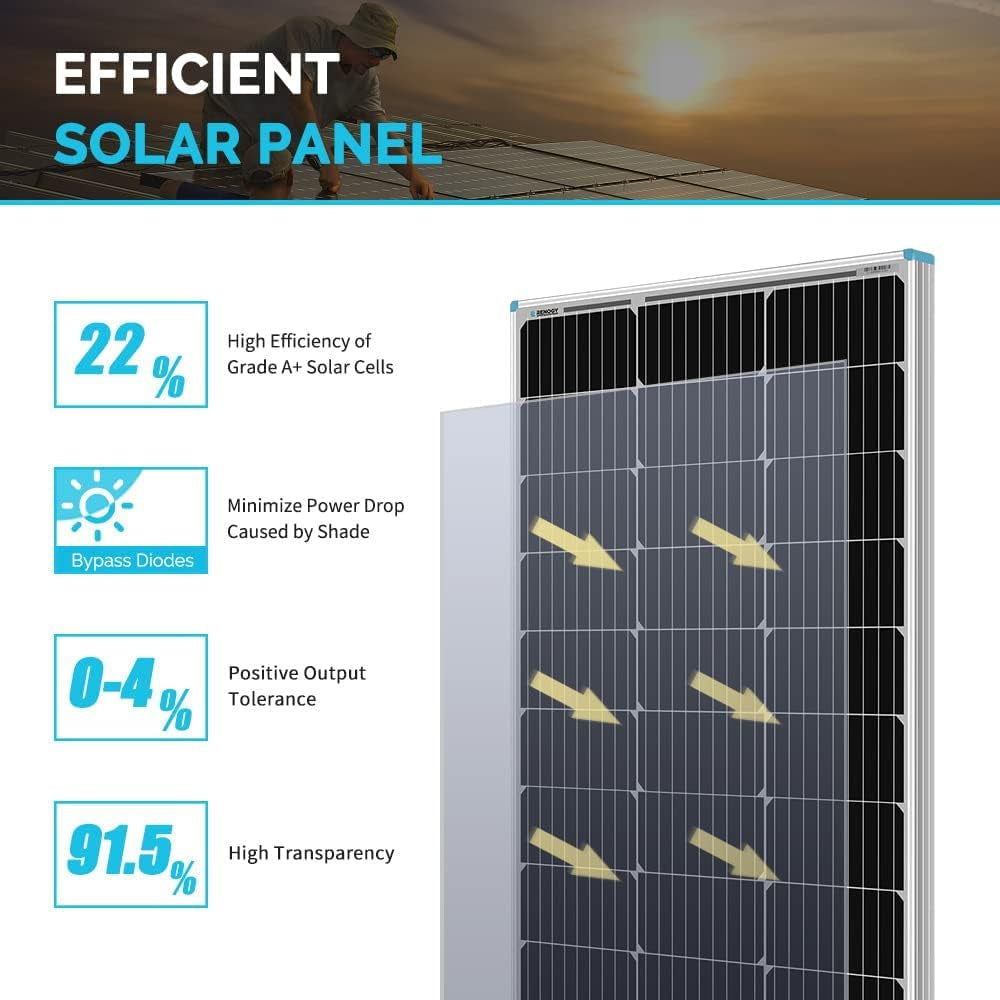

- Efficient: Monocrystalline panels come with high-efficiency cells Cell efficiency: Regular Monocrystalline 21% Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%

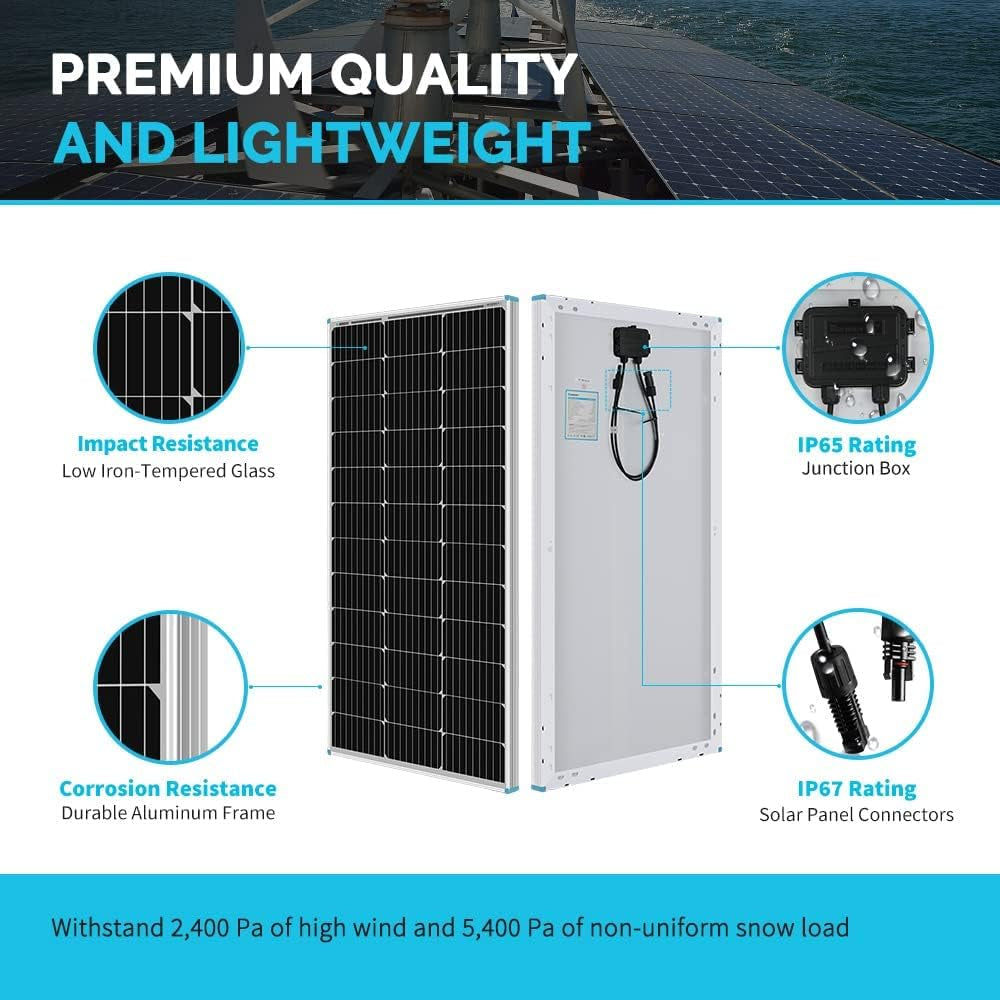

- Reliable :Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance EL tested solar modules; no hot-spot heating guaranteed Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades TPT back sheet ensures smooth performance over a long period of time IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Intuitive :4-Stage battery charging process for a rapid, efficient, and safe battery charging RS-232 port compatible for extra features Compatible with Renogy Bluetooth Module and Renogy BT App and DC Home App for remote monitoring

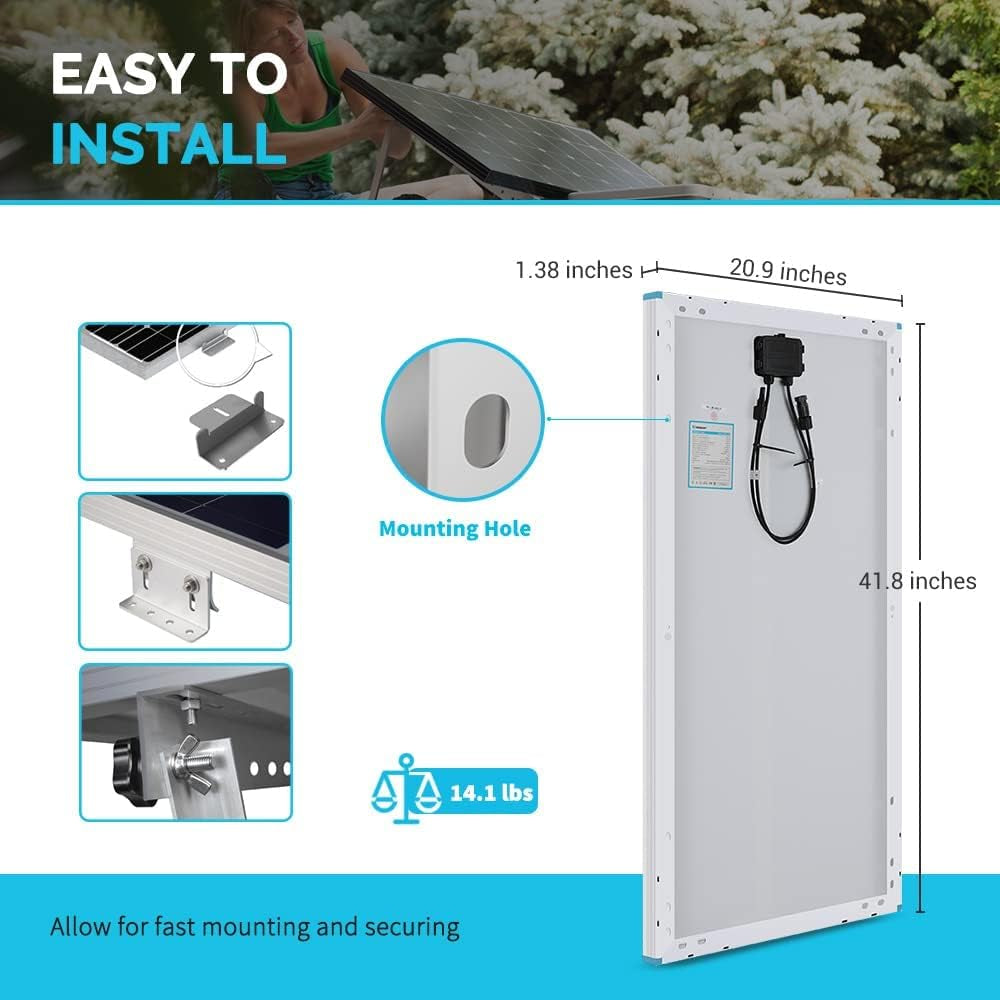

- Safe :Pre-drilled holes on the back of the panel allow for fast mounting and securing Comes equipped with an adaptor kit Inline fuse and ANL fuse components for protecting your charge controller and battery
- Power source type: Solar-Powered
Product Description
Specifications
PANEL:
Maximum Power at STC: 100W
Open-Circuit Voltage (Voc): 24.3V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Voltage (Vmp): 20.4V
Optimum Operating Current (Imp): 4.91A
Maximum System Voltage: 600V DC
- CHARGE CONTROLLER:
- Nominal Voltage: 12V/24V/36V/48VDC Auto
- Rated Charging Current: 60A
- Rated Load Current: 20A
- Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
- Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)
- Operating Temperature: -35°C to +45°C
Renogy 600W 12V/24V Premium Kit
The Premium Kit will produce an average of 2.5-3kWh of electricity per day (Based on 5 hours of direct sunlight conditions).
The 6 x 100W solar panels' energy can offset some medium-size loads such as television, washing machine, electric stove, etc.
With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 12V system expandable up to 800W solar wattage and a 24V system expandable up to 1600W.

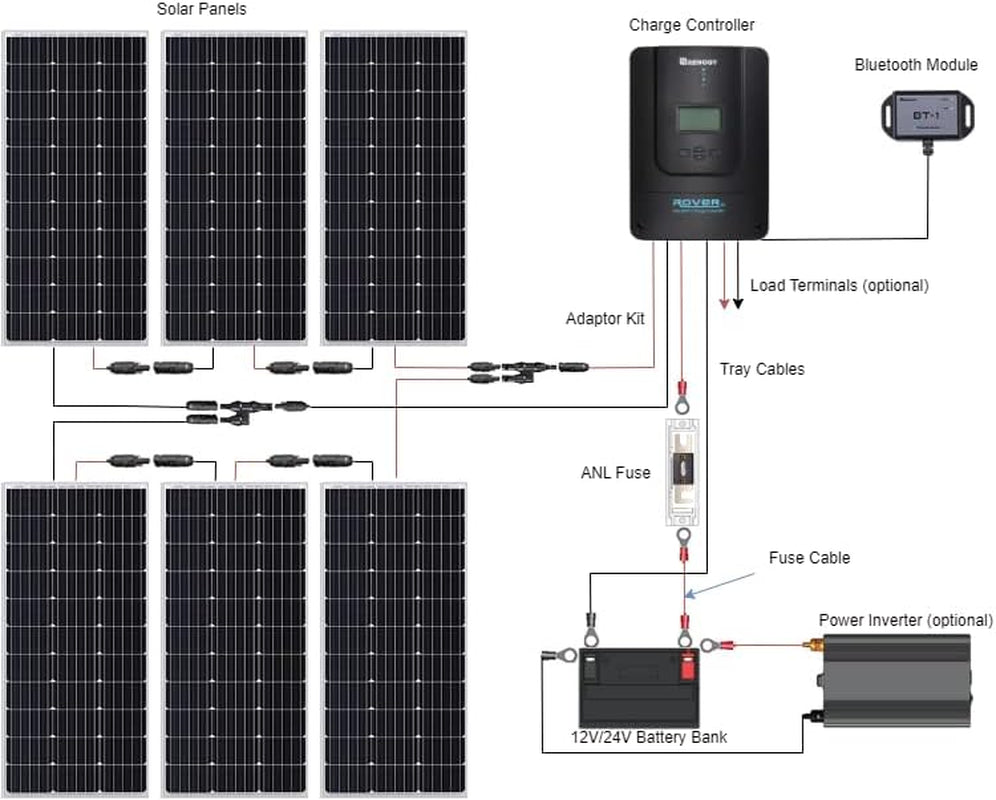

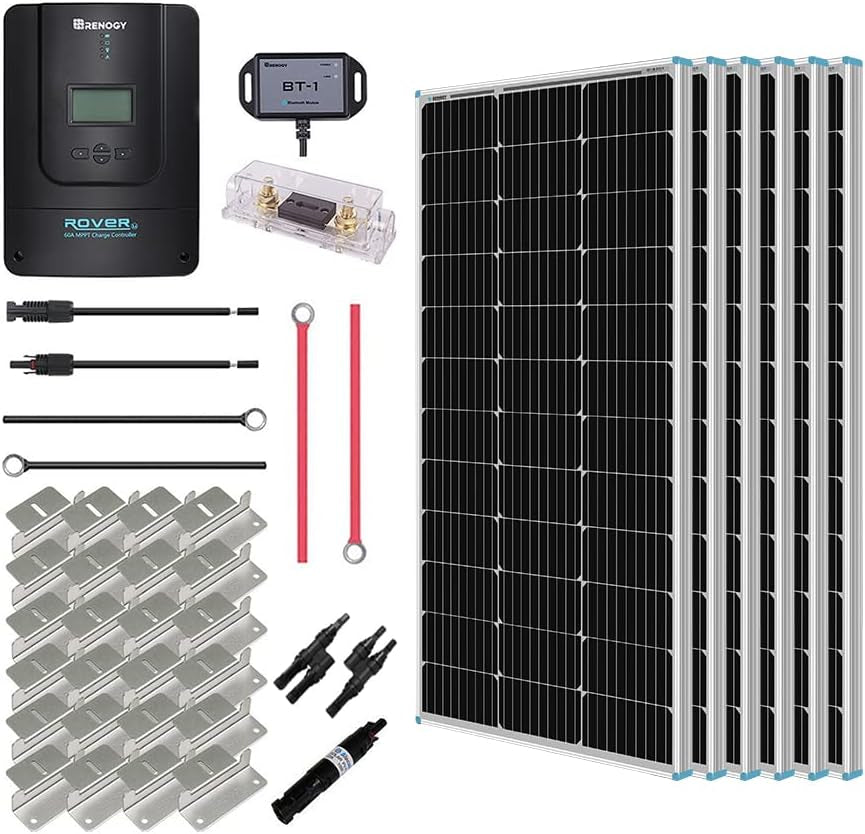

- What's in the box:
- 6 × 100W panel
- Rover 60A Charge Controller
- BT1 Module

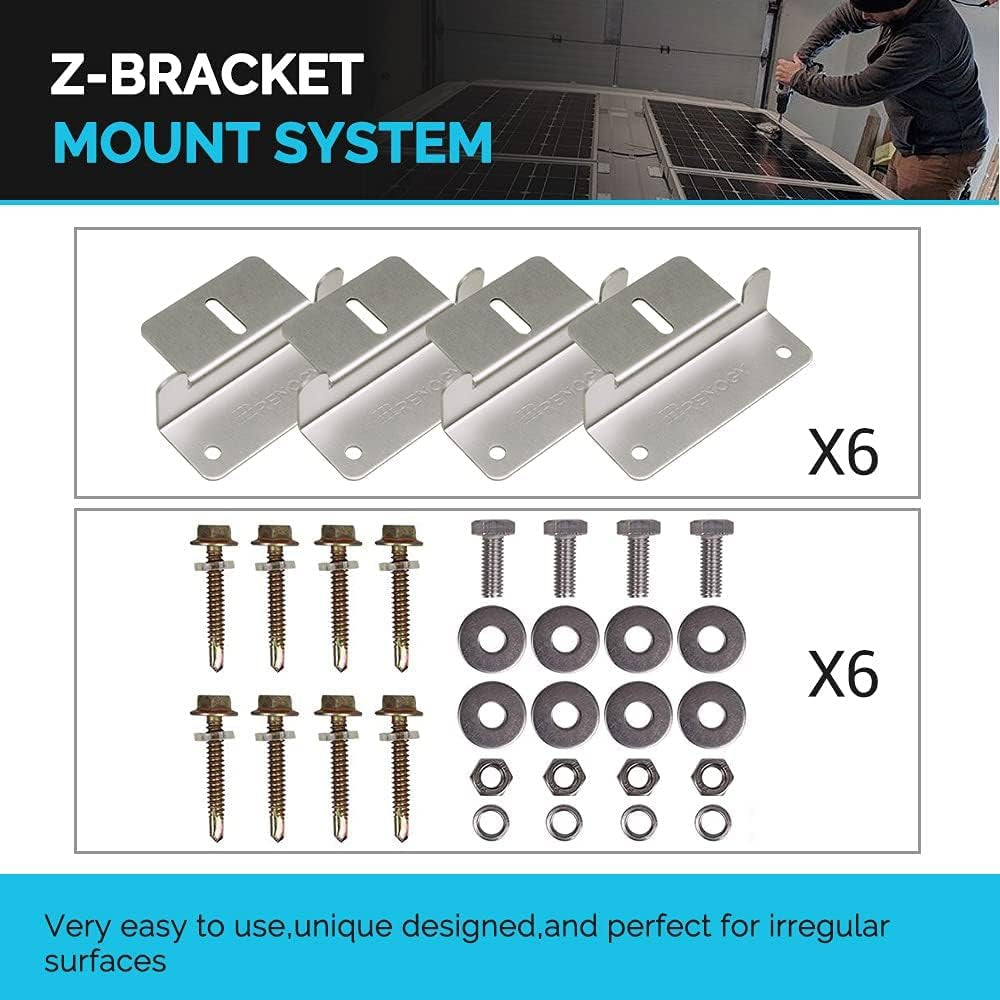

- 6 × Mounting Z Brackets
- 1 Pair x Solar Y Branch Connectors

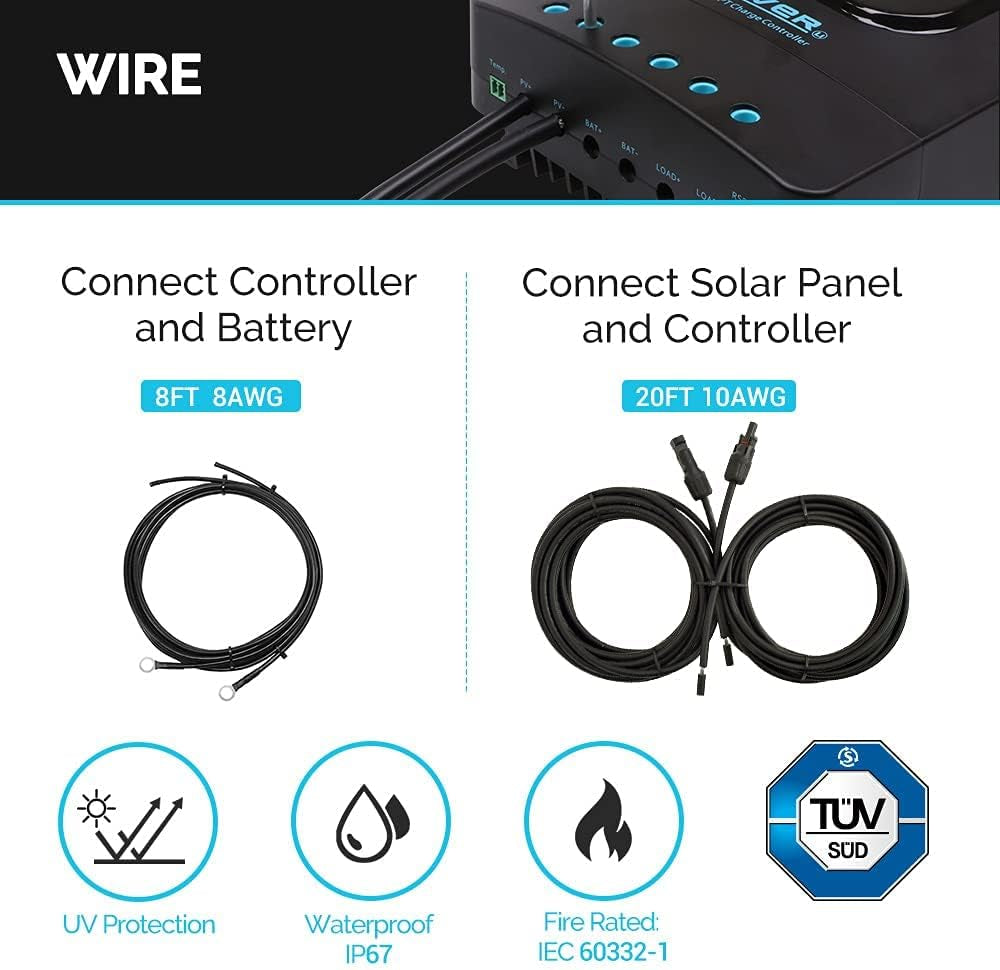

- Cables: 20ft 10AWG Adaptor Kit, 8ft 4AWG Tray Cable, 2ft 4AWG Fuse Cable
- Fuses: 15A In-Line FUSE, ANL 60A FUSE

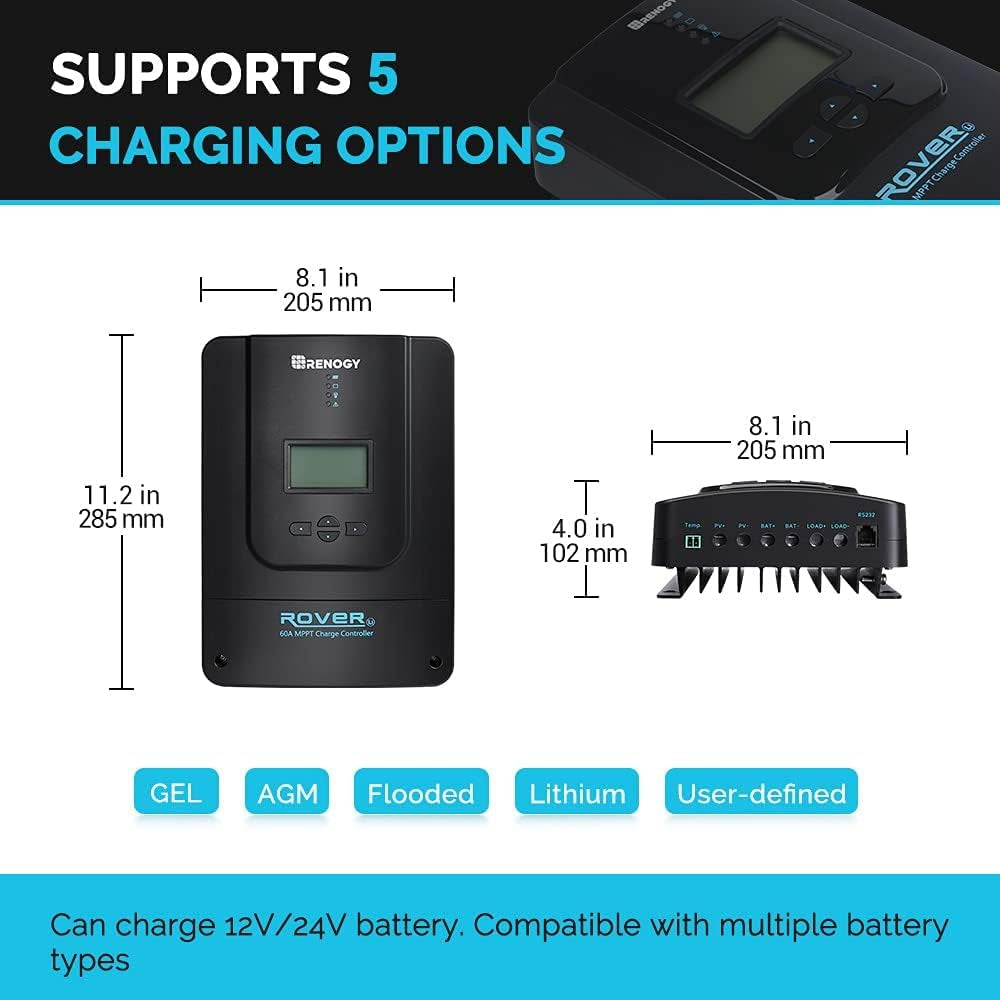

Efficient PerformanceThe bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Module Efficiency can reach 17.8%. With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 12V system expandable up to 800W solar wattage and a 24V system expandable up to 1600W. | Full System ProtectionThe Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity, overcharging, overload, short-circuiting, and reverse current. | Auto Detect and Powerful CompatibilityAutomatically detects 12V, 24V, 36V or 48V DC system voltages, and the LCD screen and multiple LED indicators to display the solar charging and battery operation information, customizable parameters, and error codes. |

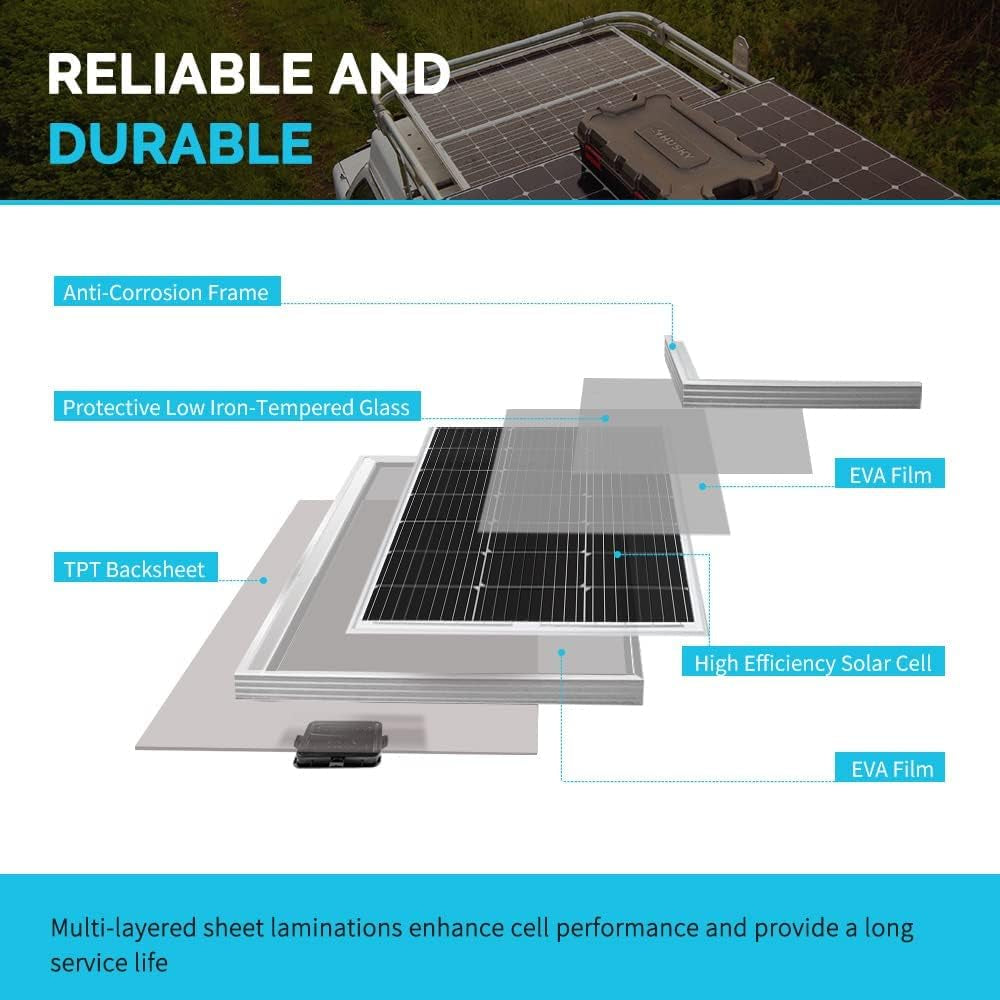

Solid QualityAdvanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life. | No Fear of Weather ChallengeThe IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in. | Ready to InstallThis Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting. |
| Customer Reviews | 4.1 out of 5 stars 16 | 3.9 out of 5 stars 36 | 4.5 out of 5 stars 481 | 4.1 out of 5 stars 189 | 4.1 out of 5 stars 38 |
|---|---|---|---|---|---|
| Price | $1,049.99$1,049.99 | $1,234.99$1,234.99 | $553.99$553.99 | $388.06$388.06 | $603.80$603.80 |
| Solar Panel | 6 x 100 Watt Monocrystalline | 8 x 100 Watt Monocrystalline | 4 x 100 Watt Monocrystalline | 4 x 100 Watt Monocrystalline | 2 x 320W Bifacial |
| Charge Controller | Rover Li 60A MPPT | Rover Li 60A MPPT | Rover Li 40A MPPT | Adventurer 30A PWM | |
| Solar Panel to Charge Controller Adaptor Kit | ✓ | ✓ | ✓ | ✓ | |
| Battery to Charge Controller Tray Cables | ✓ | ✓ | ✓ | ✓ | |
| Mounting Z Brackets | 6 Set | 8 Set | 4 Set | 4 Set | |
| Solar Y Branch Connectors MMF+FFM Pair | 1 Pair | 1 Pair | 3 Pairs | 3 Pairs | |
| Cable Entry Housing | ✓ | ||||
| Renogy BT-1 Bluetooth Module | ✓ | ✓ | ✓ | ✓ | |
| Fuse Cable | ✓ | ✓ | ✓ | ||
| In-line Fuse and ANL Fuse | ✓ | ✓ | ✓ |
