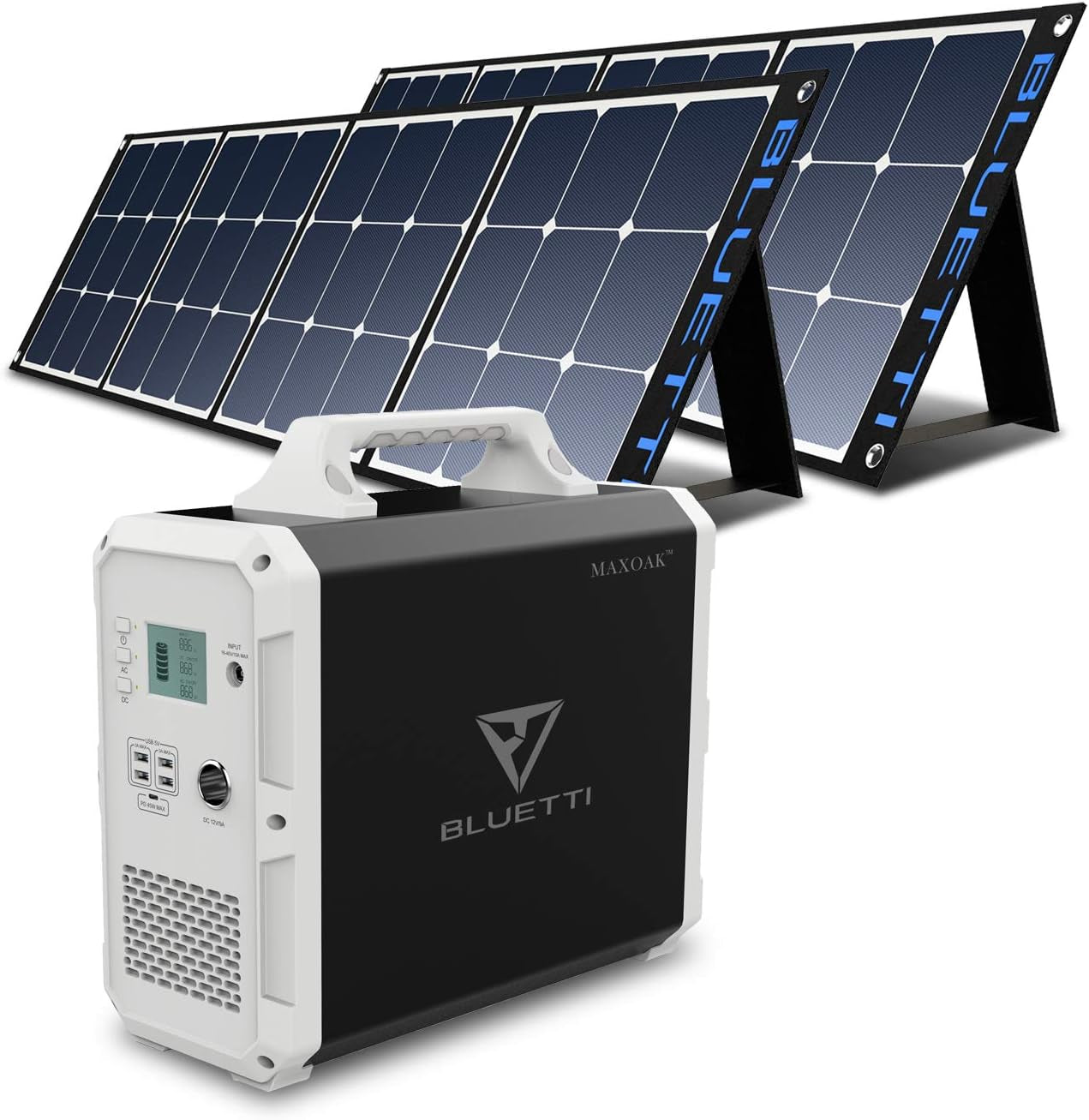

EB1500W Solar Generator SP200 Solar Generator

EB1500W Solar Generator SP200 Solar Generator

$165.01 USD
$165.01 USD
Sale Sold out
Shipping calculated at checkout.
  • 【Portable Power Station with 2Pcs Solar Panel Bundle Package】1*BLUETTI EB150 Solar Power Station (1500Wh/1000W) and all the accessories ( 1*200W AC adapter*1,Solar Charging Cable(DC to MC4,Length:1.7m)*1, Manual*1) and 2 pcs SP200 200W foldable solar panels and all its accessories(MC4 Charging Cable, Length: 3m).
  • 【BLUETTI EB150 Power Station】-1500Wh/1000W huge capacity clean solar power station with a wide 16-68V/Max.500W/10A solar Input, MPPT, allowing recharge from AC wall outlet in about 8Hrs and and 3Hrs(if total sun power 500W max.). Two 110V AC outlet(1000W, pure sine wave) can load max. 1000W devices continuously( last 2mins if load 1000-1200W). Regulated DC12V protect your car-powered devices and other sensitive 12v devices.
  • 【BLUETTI 200W Solar Panel】It's made of high qualified monocrystalline silicon cells which is 5% higher efficient than traditional monocrystalline. It features with ETFE lamination thus has better light transmittance, more durable, scratch-proof, and easy to clean by wet cloth. Foldable design with handle, weight only 14.3lbs. Convenient to carry around for outdoor camping. Easily adjust the angle by the kickstands for better solar absorption.
  • 【Solar Recharge time】According to the wide open circuit voltage range 16-68V, we recommend you can connect at least 2pcs SP200 solar panel in series(5.5-6hrs fully recharge) or 4pcs in parallel(4.5-5hrs fully recharge, need buy a parallel cable), The actual recharge time may varies from weather condition, temperature or the angle or the location you place the solar panel. We recommend use the BLUETTI SP200 solar panels for better compatibility to charge BLUETTI Power Station.
  • 【Durable & 2500+ Cycle Life】Built in automobile-level 3C high rate battery cell and multi-protection BMS(Battery Management System) design,extend battery life through short circuit / overcurrent /overvoltage / overload /overheating protection

Product Description

About BLUETTI

With over 10 years background of energy industry, BLUETTI is committed to provide premium all-in-one sustainable power solutions for all kinds of off-grid life.

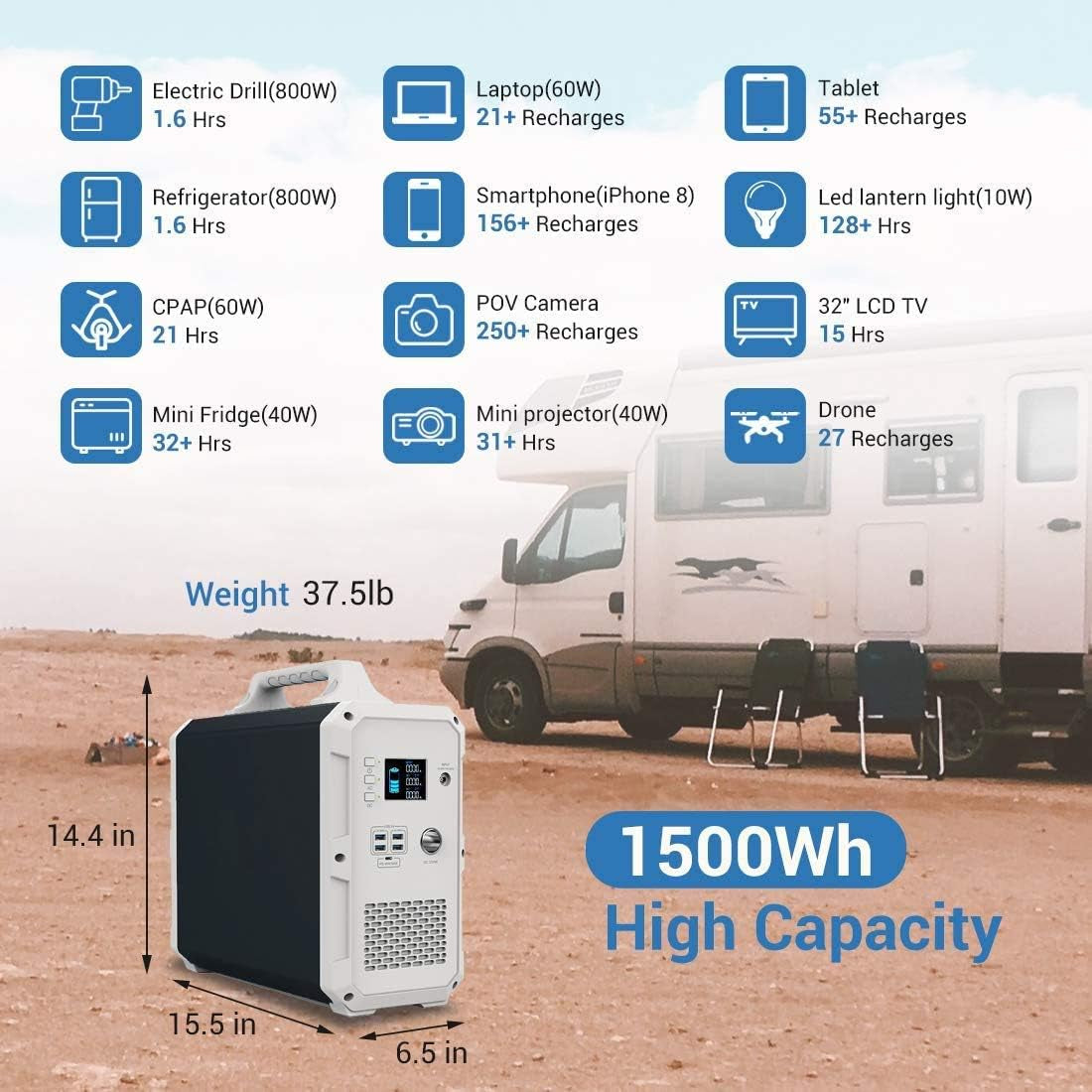

BLUETTI EB150 Portable Power Station

  • Capacity: 1500Wh/1000W, Top-Brand Lithium Polymer Battery Cell ,2500+ cycle life
  • Load: Continuous 1000W(1000W-load-1200w@2mins,Above 1200W,turn off)
  • Multi-Outputs for Various Power Needs: 2* 110V AC Outlets(Pure sine wave), 12V/9A Car port,1* PD 45W USB-C and 4*5V/3A USB
  • Regulated DC12V,Care for Car-powered Devices.
  • Solar Input: Max.500W, OCV 16-68V,Current Max.10A, MPPT

BLUETTI SP120W Foldable Solar Panel

  • Monocrystalline silicon cells, ETFE, scratch-proof, and easy to clean
  • Cell efficiency:23.5%, working voltage: 20V, OCV:24V, short circuit current:11A

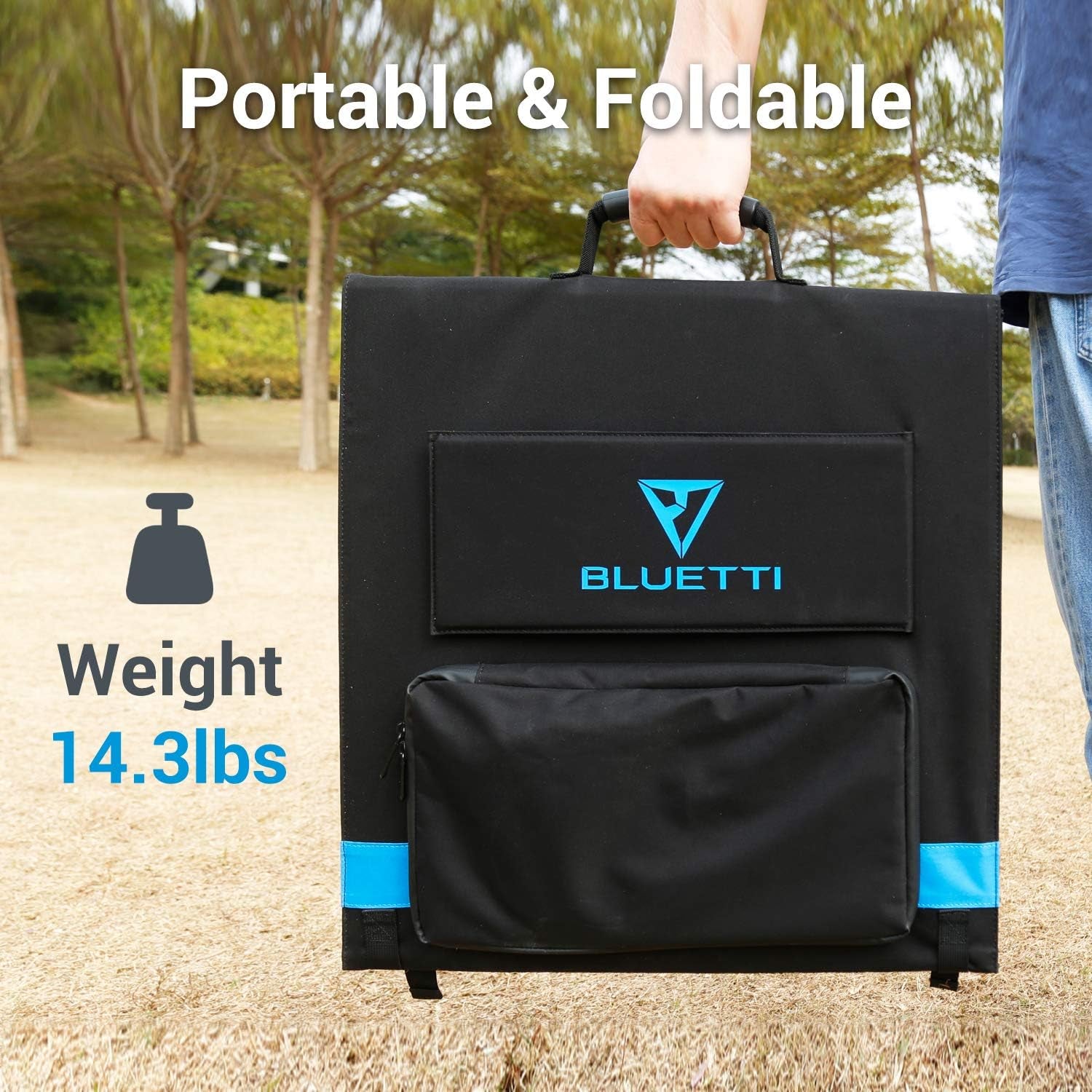

  • Portable & Compact: 20.7*20.5inch(Folded), Weight:14.3lbs

Tips:We recommend use the BLUETTI solar panels to Charge BLUETTI Solar Power Station.

2Pcs SP200 Recharge EB150 fully: About 5.5-6Hrs

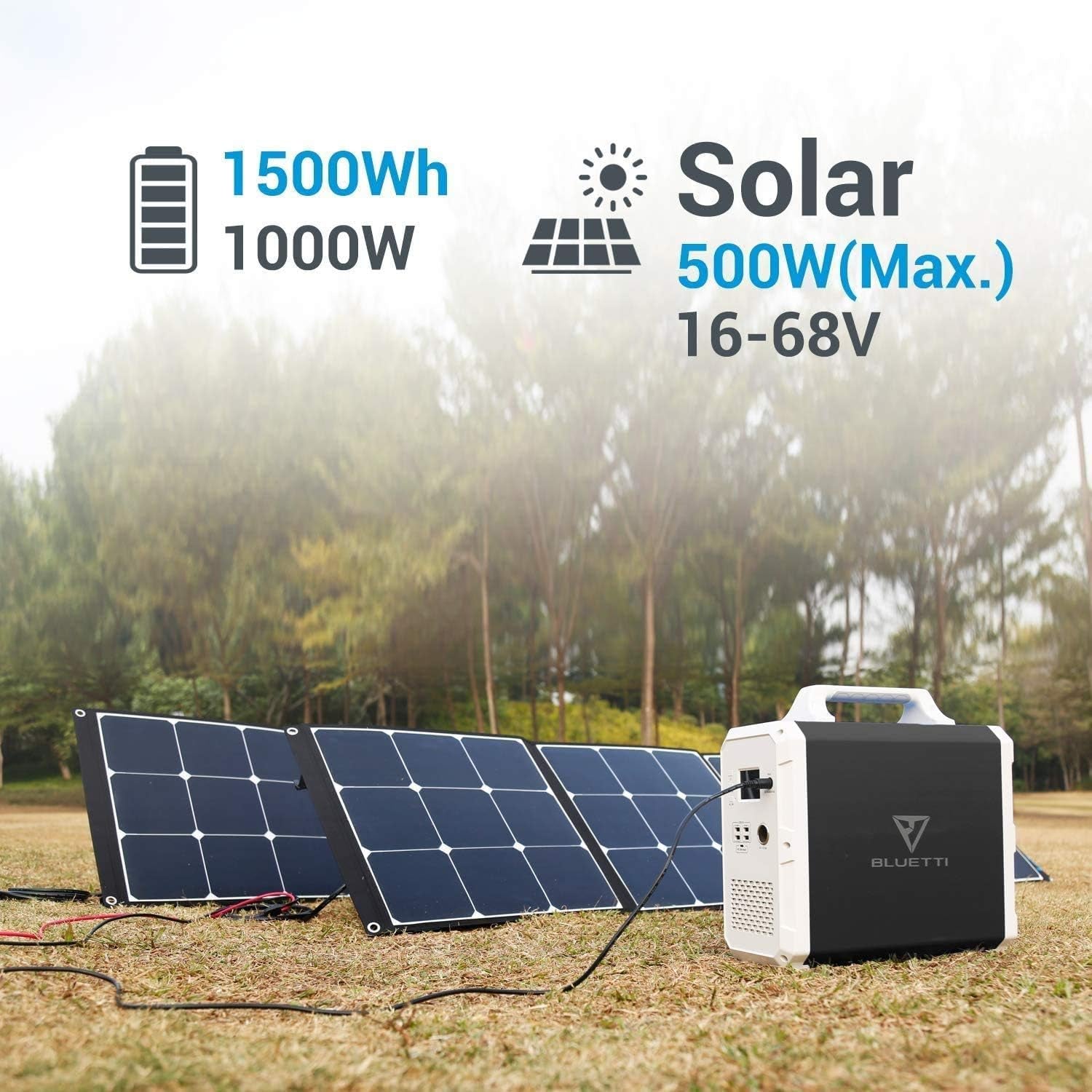

Connect EB150 with 2 SP200 solar panel in Series

We recommend You can connect 2pcs SP200 200W solar panel in series as shown in the picture above.

Tips:

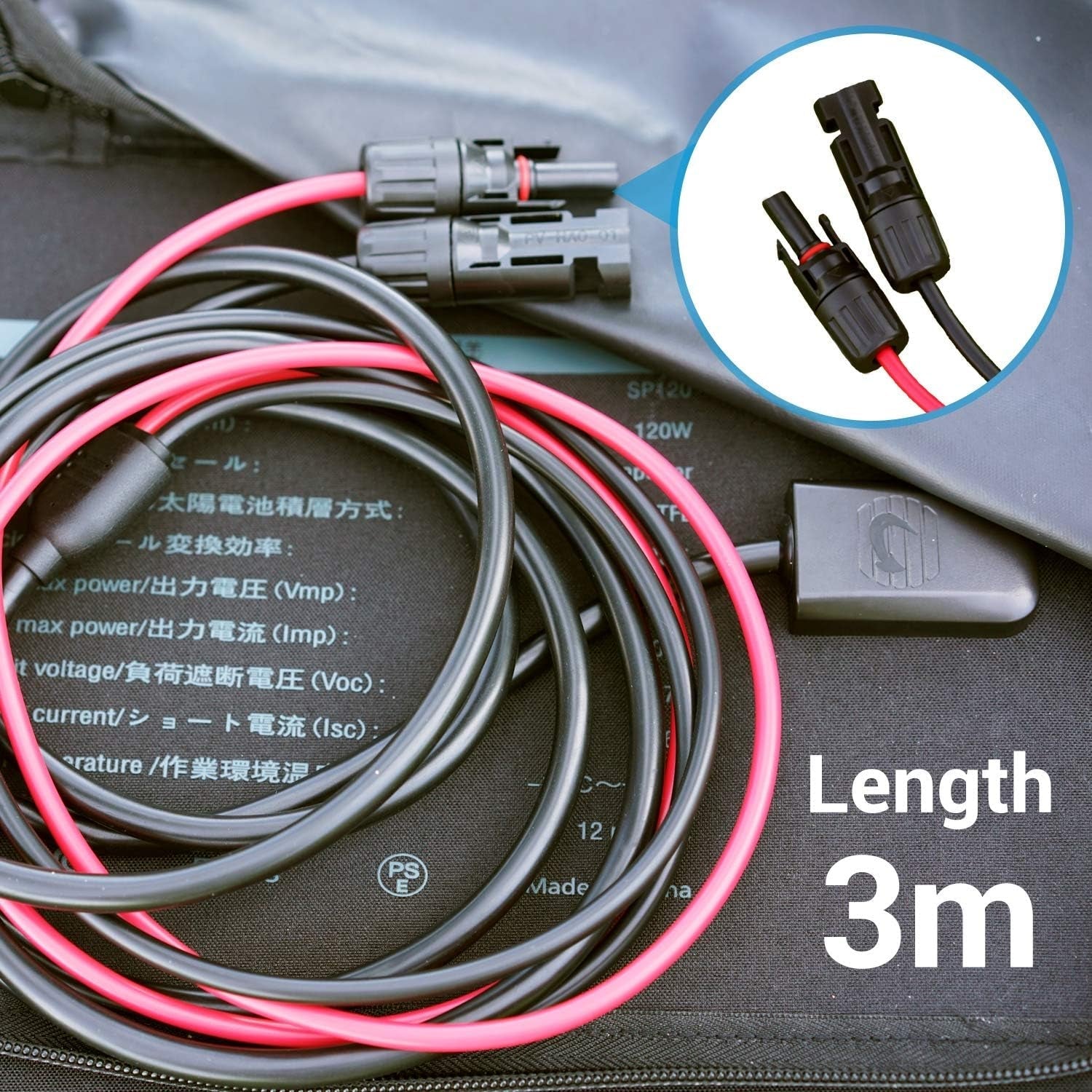

  • we include the solar charging cable(DC to MC**4), you can connect solar panel with BLUETTI EB150 portable power station via the solar charging cable.
  • We built in MPPT controller in the EB150 power station, no need other extra accessories such as MPPT controller.

Recharge Time:

2Pcs SP200 200W solar panel recharge EB150 fully: About 5.5-6Hrs (Solar Panel sold separately)

Note:

  • The above result is a theoretical value which is calculated based on connecting the solar panels in series and tested under full sun.
  • The recharge time may varies from the total actual input solar power, the weather condition, the angle and the location /the altitude you place the solar panel.

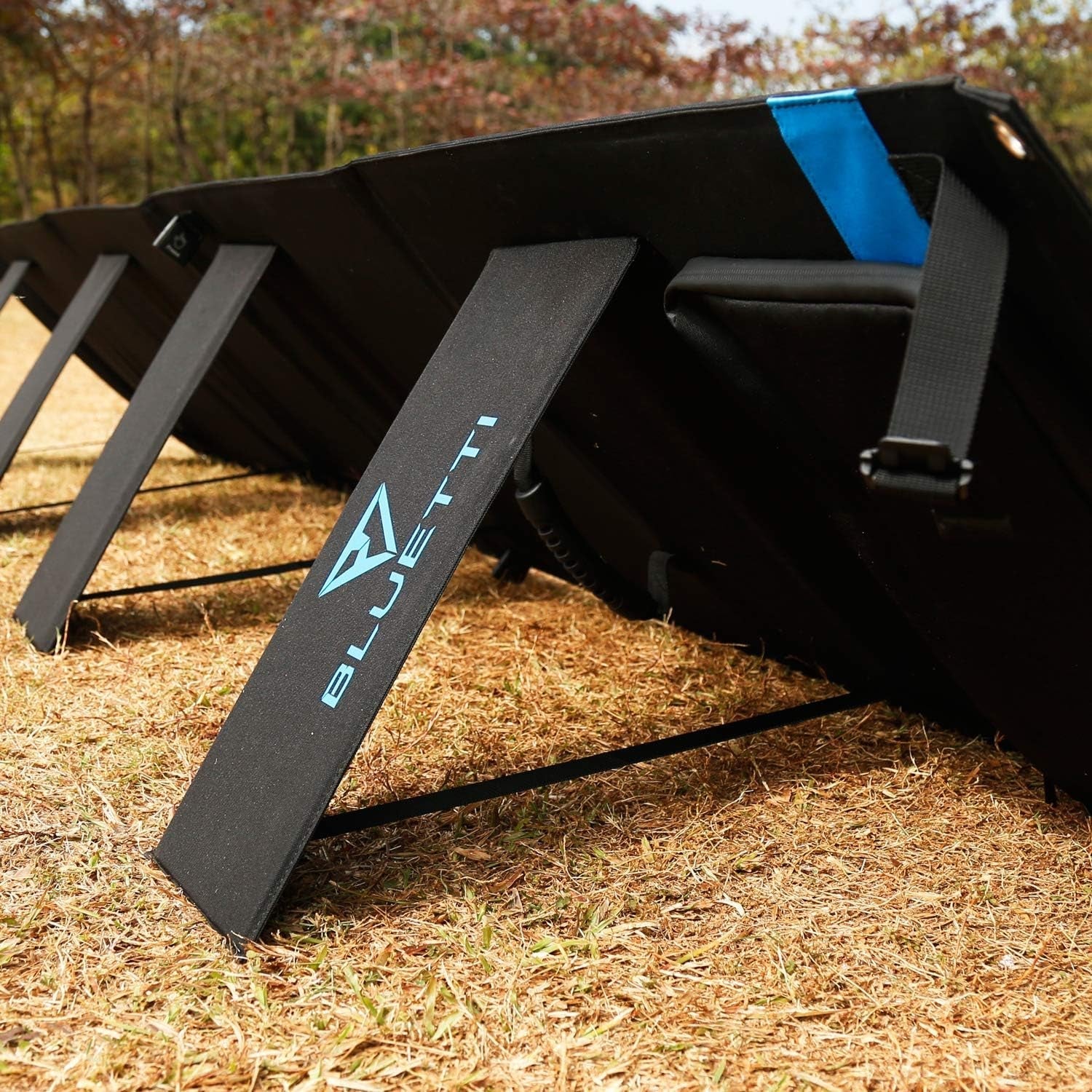

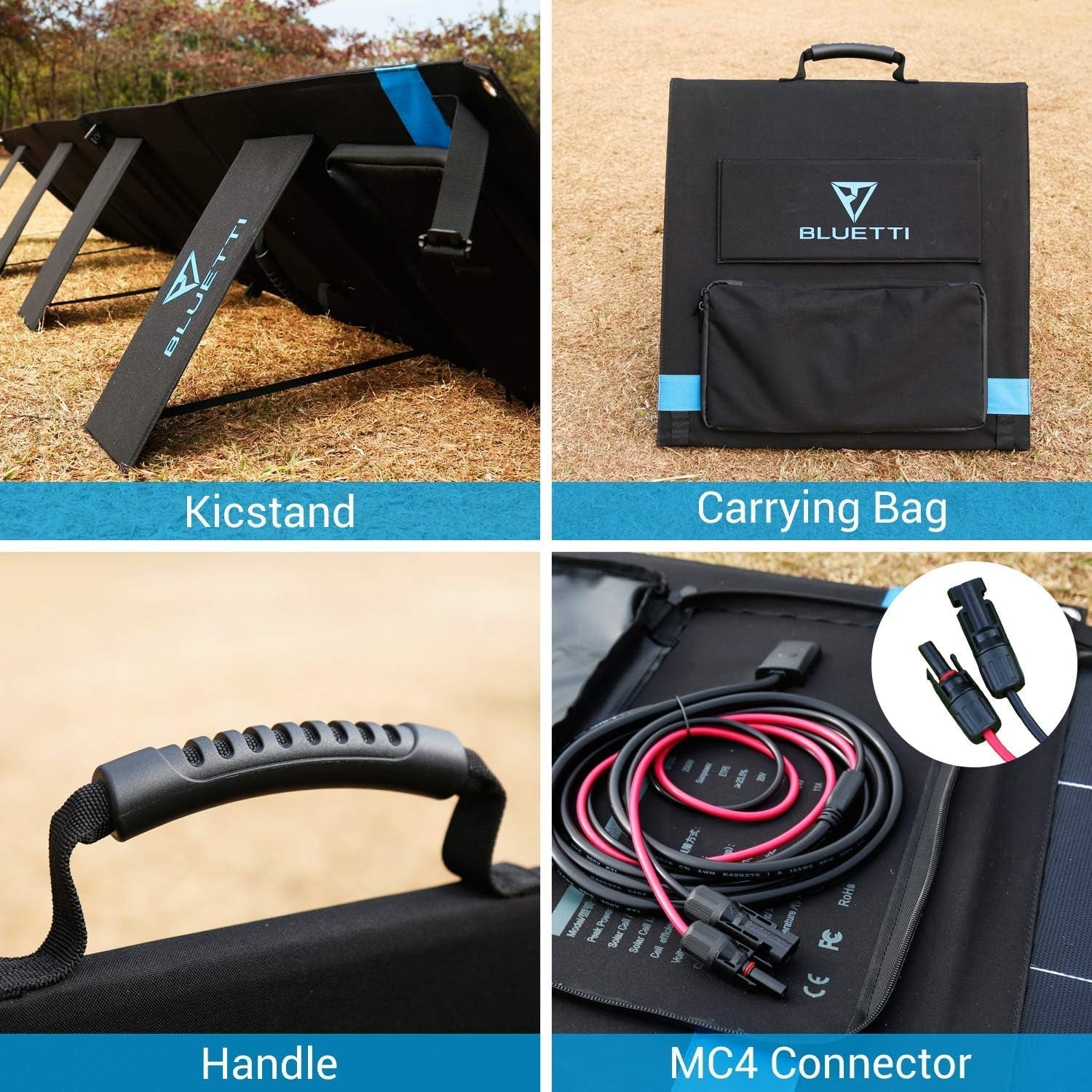

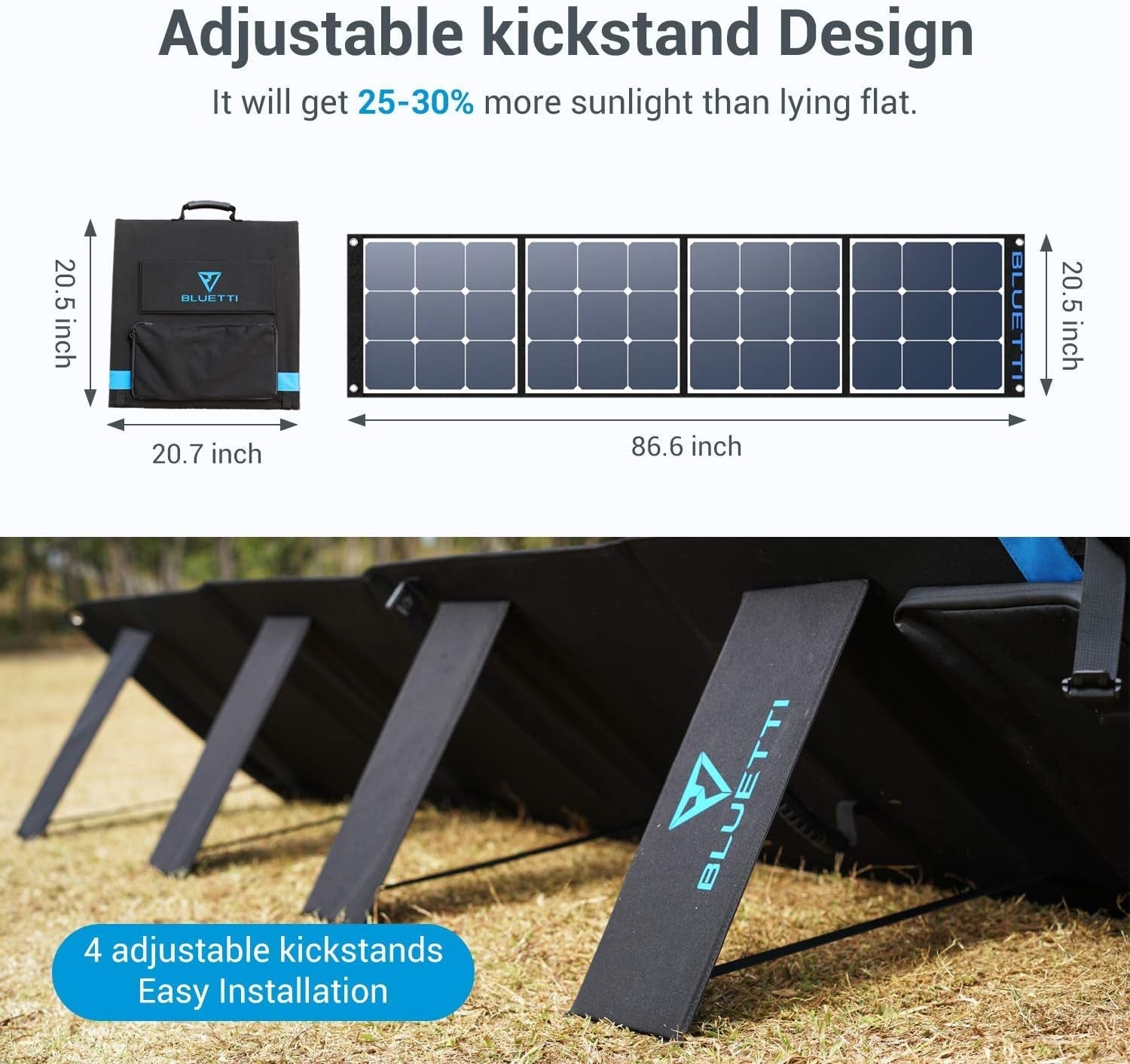

Kickstands

The four kickstands keep the best angle for better receiving the sunshine.

ETFE

The advantage of ETFE compared with PET:

  • Durable
  • Scratch-proof
  • 5% higher efficiency
  • Better light transmittance

Hanging Ring

You can hang the solar panel on the window via the hanging ring.

Customer Reviews
4.4 out of 5 stars
815
4.4 out of 5 stars
815
4.1 out of 5 stars
62
4.4 out of 5 stars
183
4.3 out of 5 stars
158
4.4 out of 5 stars
246
AC Load / / Continuous 1000W Continuous 300W Continuous 2000W(Surge 4800W) ContinuContinuous 2000W(Surge 4800W)ous 300W
Recharge Way / / AC/Solar/Generator AC/Solar/Car/Generator AC/Solar/Car/Generator/Lead-acid Battery AC/Solar/Car/Generator/Lead-acid Battery
Solar Input / / OCV16-68V/Max.500W/Max.10A OCV14-40V/Max.10A OCV35-150V/Max.700W/Max.12A OCV35-150V/Max.700W/Max.12A

FAQ:

Q1: How to choose the solar panel & what is the recharge time?

A: we recommend to choose solar panel that meets below:

1) open circuit voltage between 16-68v(OCV,open circuit voltage), Max.500W, Max.10A

2) MC*4 Connector (if your solar panel has an anderson connector, you need to buy a anderson to MC*4 charging cable)

Note:total OCV below 16V or above 68V will trigger low-voltage/over-voltage protection. We suggest to choose the working voltage of the solar panel above 18v for better performance. EB150 only receive 500W/10A(Max.) if total input power /current exceed 500W/10A.

The recharge time various from different factors such as weather condition, the actual input solar power, temperature, angle, etc.

Q2: How many solar panels can i connect to the BLUETTI EB150?

A: we suggest to connect 2pcs SP120 120W solar panel in series.

For professional solar user, you can connect SP120 2S2P(total 4pcs) to reach the max. solar. (the parallel cable not included)
