MRCOOL DIYM248HPW00C08 DIY Multi-Zone Series Ductless Heat Pump, White

$6,001.55 USD

Sale Sold out

Shipping calculated at checkout.

Model Diym248Hpw00C08

Easy DIY installation
Pre-charged DIY quick connect line set
Energy efficient DC inverter
Eco safe R410-A refriderant
Smart app controls

Product Description

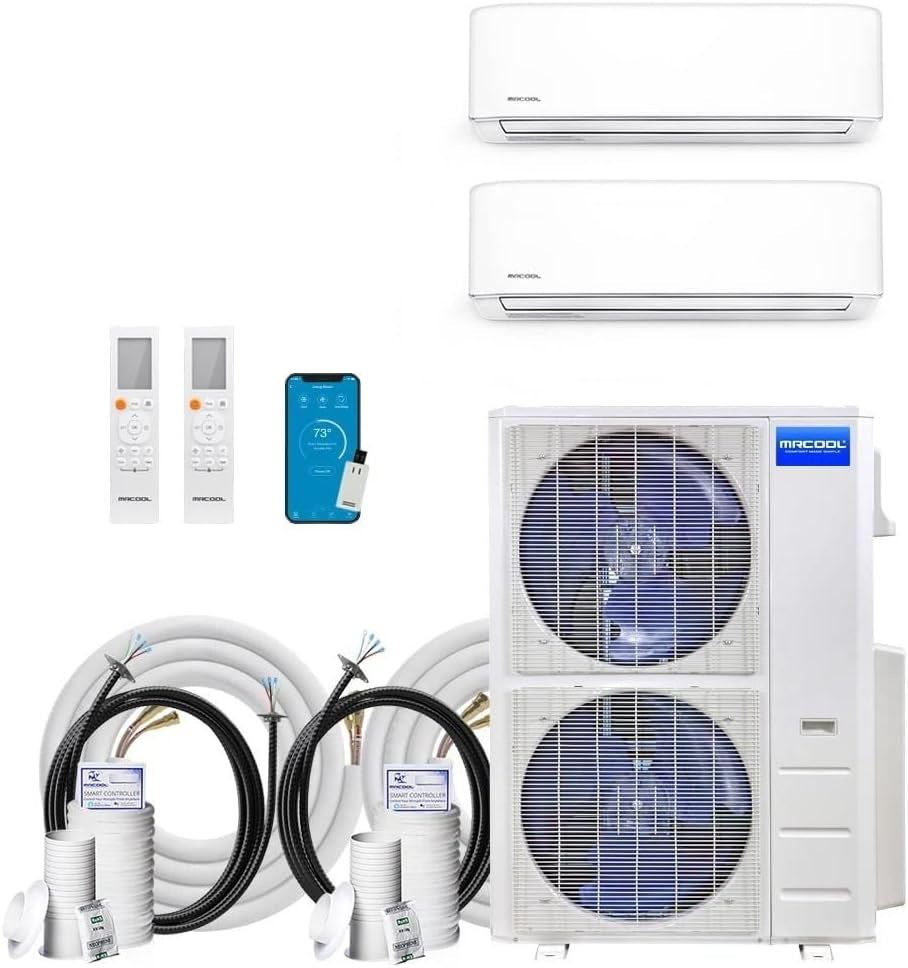

System Includes:

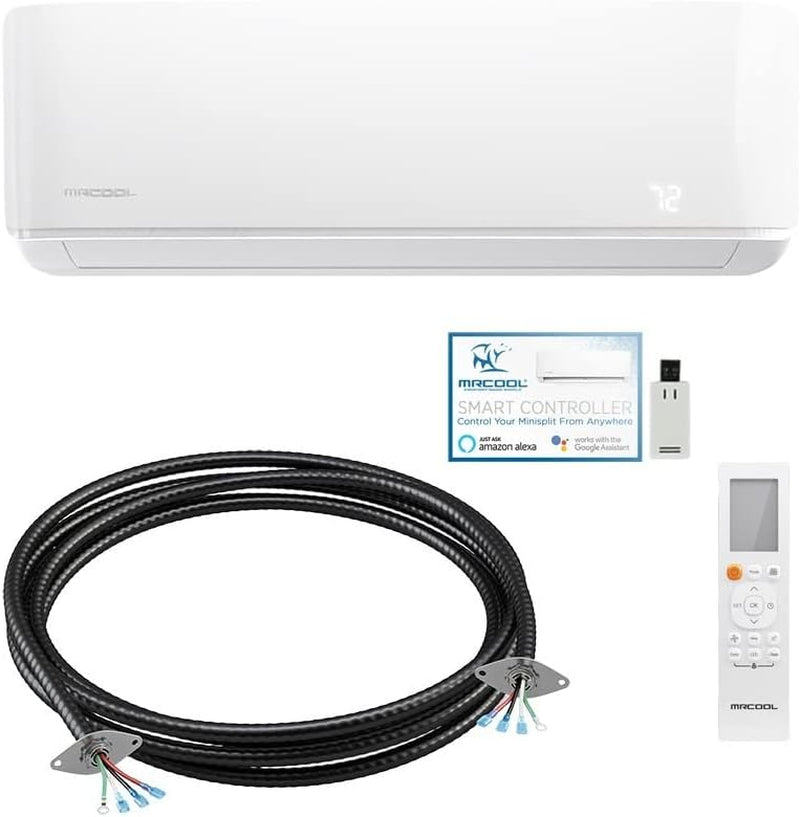

2 Indoor Wall Mounted Air Handlers

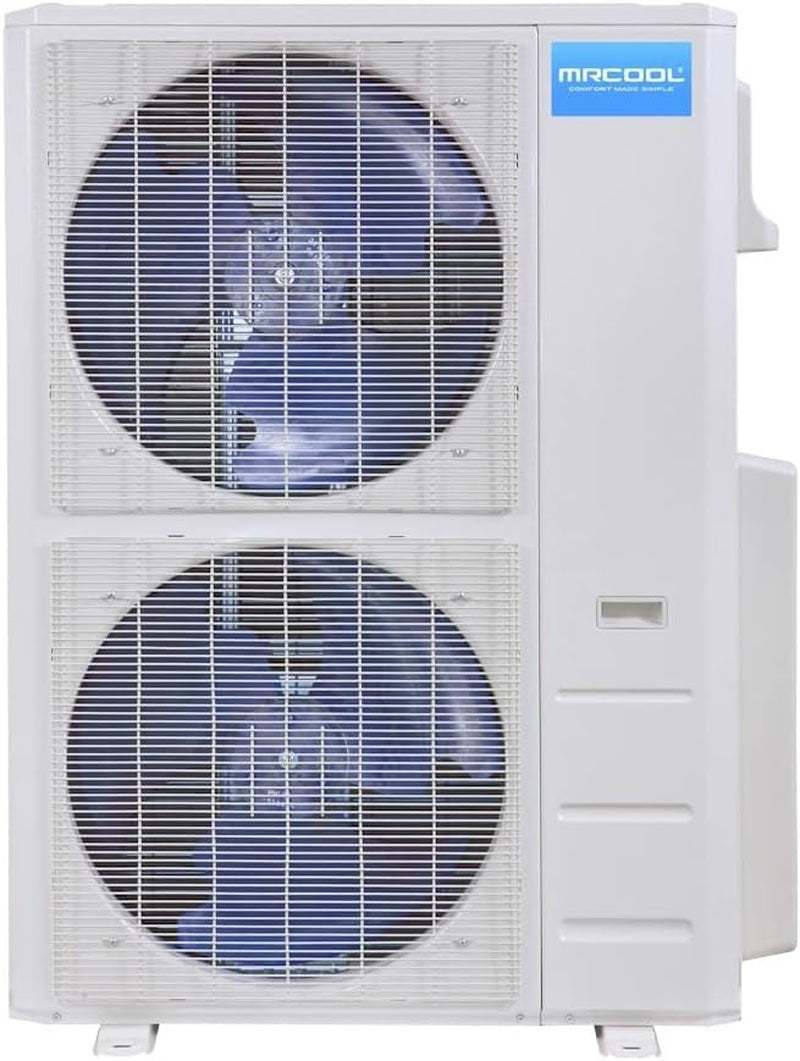

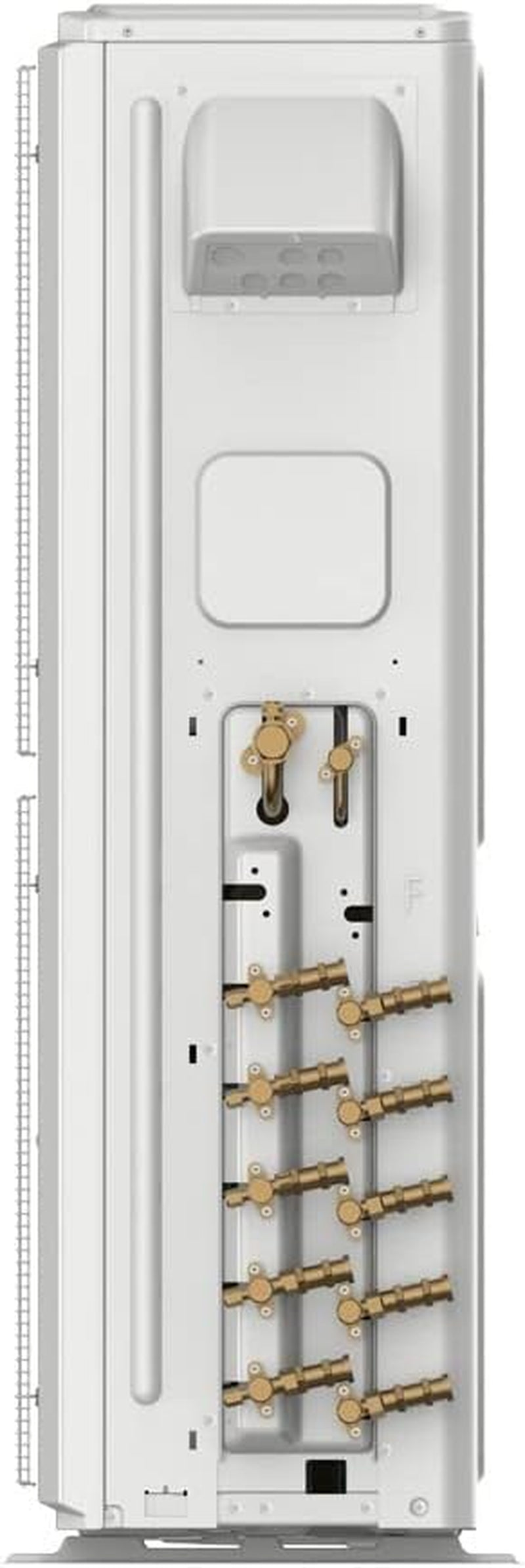

1 Outdoor Heat Pump Double Stack Condenser
2 Remote Controllers
2 Pre-Charged Quick Connect Refrigerant Line Sets
2 New DIYPro Cables
Smart HVAC Controller Module WiFi Smart Kit
Installation Kit

MRCOOL 4th Generation DIY Multi-Zone

Simple, easy air in 2 zones!

Introducing the new 4th Gen MRCOOL DIY 2-Zone Split System. The air handlers have the power to deliver air to areas up to 1,000 sq ft, and the condenser has the ability to deliver heating performance when temperatures reach 5°F. With a compact design this air handler can be mounted to interior walls, and due to our Pre-Charged Quick Connect Line Sets you don’t need a HVAC technician to install anything. The MRCOOL DIY Multi-zone is equipped with the power to satisfy the A/C needs of your home.

MRCOOL ductless mini-split air conditioners and heat pumps are the cutting edge of what modern fabrication can produce. These air conditioners deliver high efficiency air comfort anywhere you need it.

Multi-Zone

One House, One Solution

Multi-zone technology gives you flexibility and control whenever and wherever you want it.

Easy DIY Installation

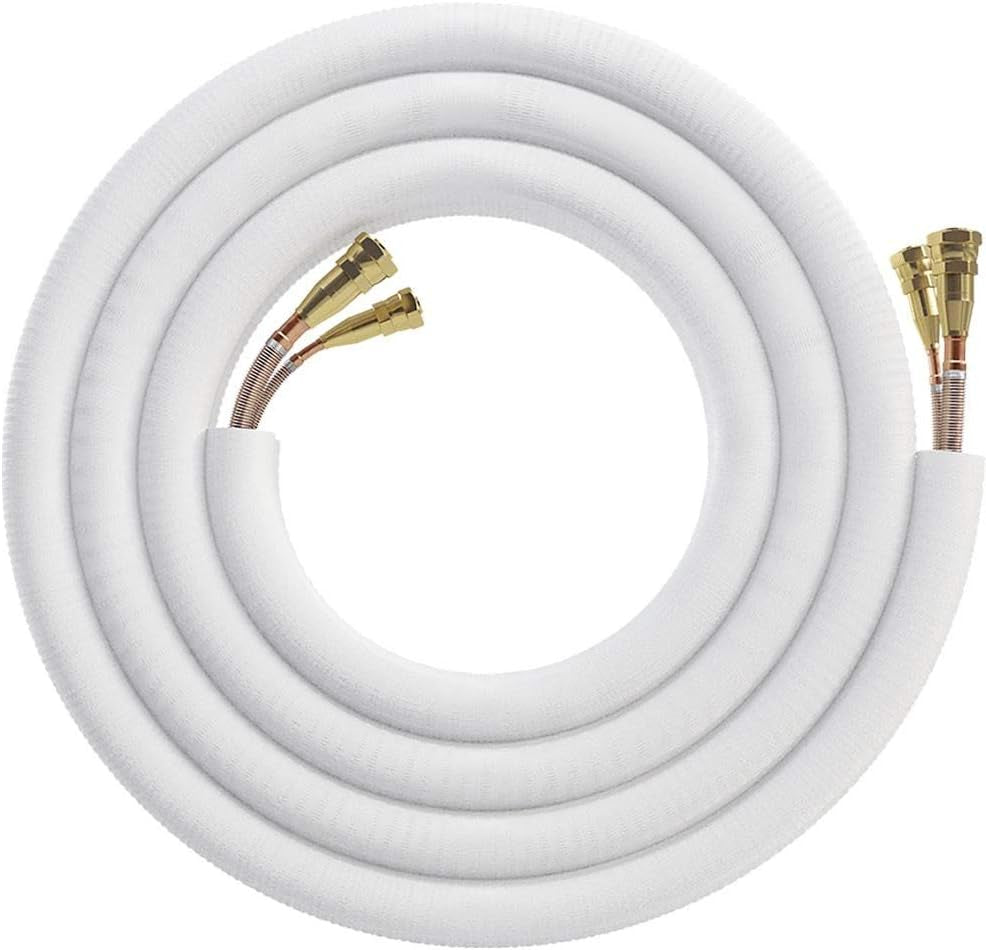

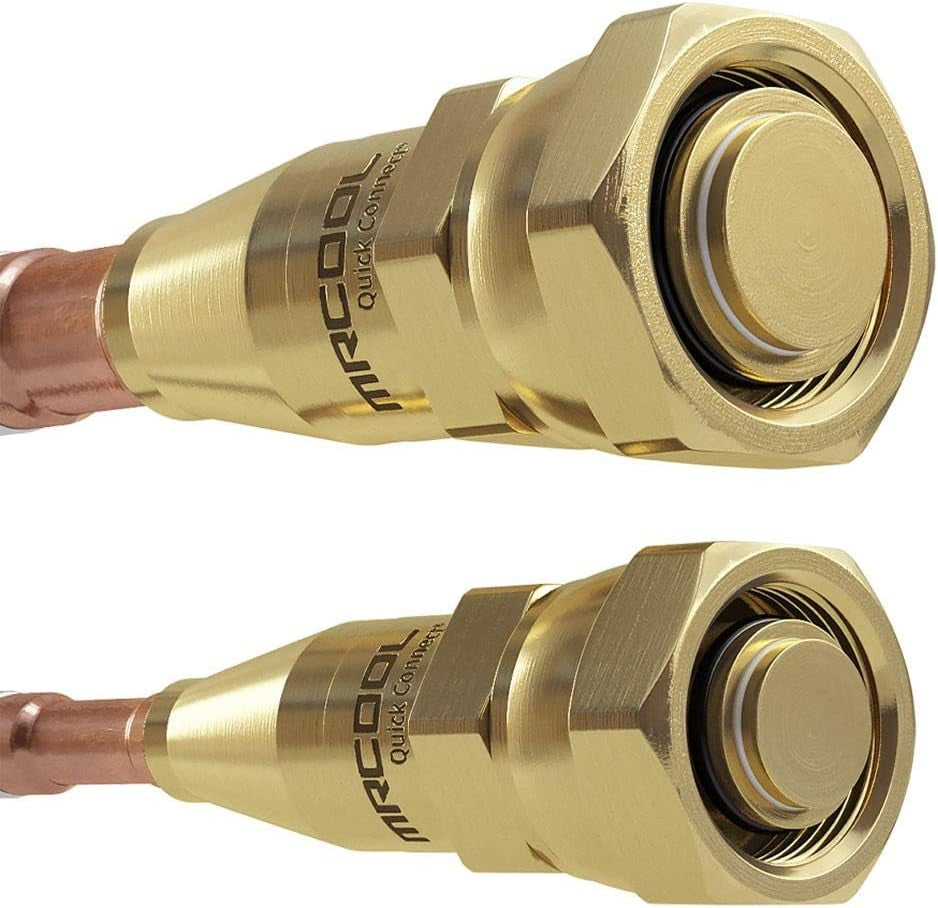

Precharged R-410 Quick Connect Line Set

Available in 16' and 25' options, pre-charged linesets allow you to install this innovative ductless system without special tools, equipment, or training.

Low Ambient Cooling

Cooling Down to 5°F

This feature makes the MrCool DIY the ideal system for server rooms, greenhouses, and any other application that requires cooling all year.

Gold Fin Condenser

Corrosion Resistant

Live on the coast? Don’t worry, our condenser is built to resist long term corrosion.

Follow Me Function

Personalized Performance

Keep the remote close by, and MrCool DIY will track the air temperature around you to ensure you receive maximum comfort.

Digital Assistant Ready

Google Assistant & Amazon Alexa

The new MrCool Smart HVAC Controller Module and app fully support Google Assistant & Amazon Alexa out of the box.


Customer Reviews	—	4.1 out of 5 stars 11	5.0 out of 5 stars 2
Price	—	$4,264.00$4,264.00	—
Cooling Capacity	24000 BTU	27000 BTU	48000 BTU
Heating Capacity	24000 BTU	27000 BTU	48000 BTU
Power Input	208-230V	208-230V	208-230V
Maximum Amps	60 Amps	40 Amps	60 Amps
SEER2	20.5	22	20.5
HSPF2-4	9.6	9.5	9.2
Noise Level	61.5 dB(A)	61 dB(A)	61.5 dB(A)
